Models built using an alloy of Zinc, Aluminum, Magnesium and Copper.
MINI
These models are favorites because of their small size and versatility of installation.
Our designers have revamped the latch to improve the fit to 3mm and created the waterproof model with IP68 on the electronics.
The functionality of the automatic system and also the monitoring system have been redesigned to offer better contact and reduce the size of the strike as much as possible.
Series 5 Instructions
Series 5
Models built using an alloy of Zinc, Aluminum, Magnesium and Copper.
Models incorporating an internal mechanism reinforced with a steel injection moulding process.
Models that are entirely built using a steel injection moulding process.
Models that are entirely built using a steel injection moulding process and are resistant to more than 1,150ºC for 120 minutes.
All models feature the highest degree of IP68 protection used in electronics, and with different levels of corrosion resistance depending on their use.
Resistance test carried out in our own laboratories and applying full breaking forces to the strike with adjustable latch. The models of fire doors with fixed latch exceed 14,000N.
The innovative 5 Series electric strikes are not only distinguished by their sleek design and superior performance, but also offer impressive fire resistance of up to 90 minutes.
In the face of flames, choose tranquility.
Series 5
Easy installation as there is no electrical polarity, i.e. it is not necessary to know which is the positive and negative charge for its connection. All electric strikes includes a surge protector (TVS) as standard for greater operational safety.
We maintain the width of the terminal strip to avoid possible conductivity of the electrical cables with the metal box of the striker. A new patented connection terminal to maintain an optimal contact and fluidity of the electric current.
CONNECTION TERMINAL STRIP COLORS

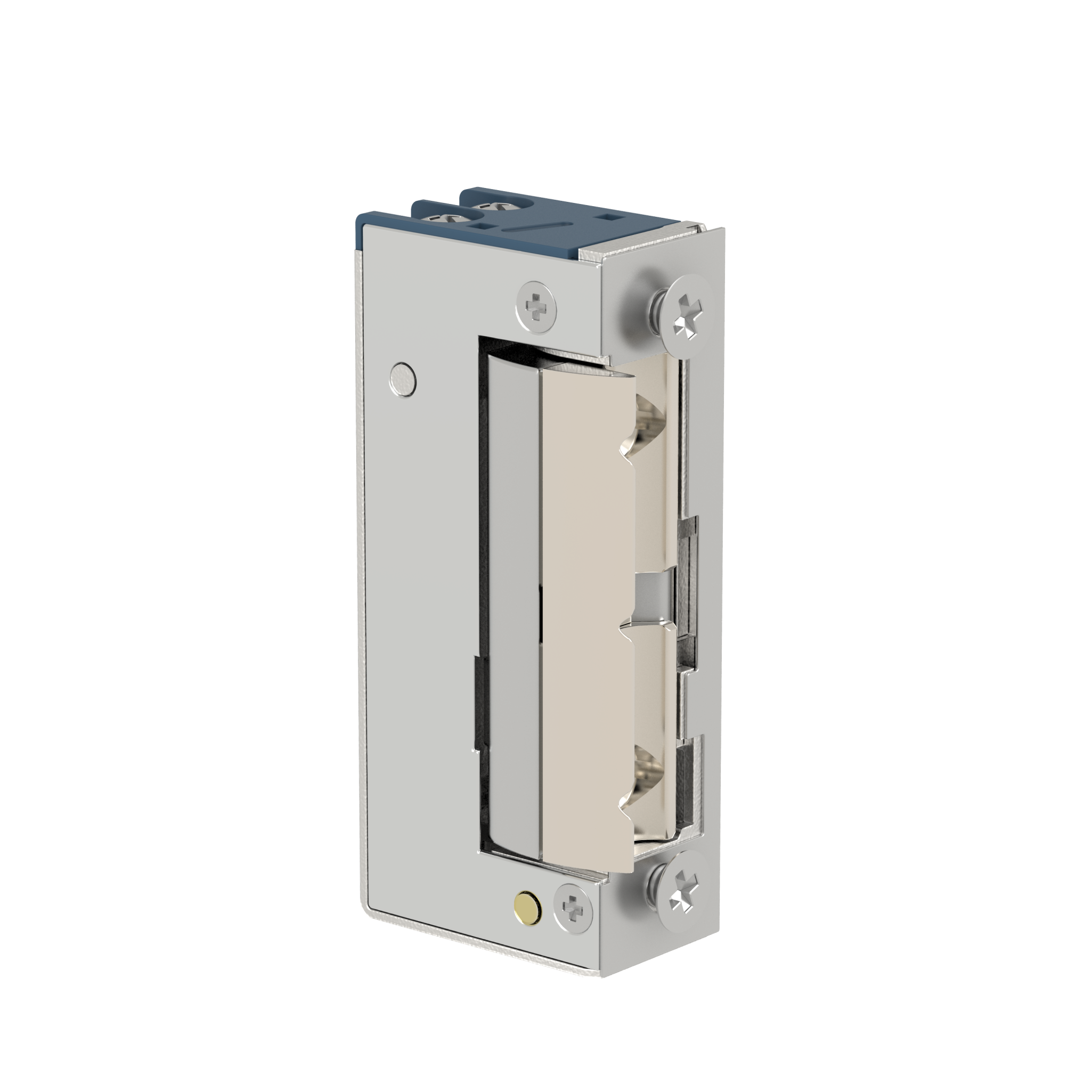

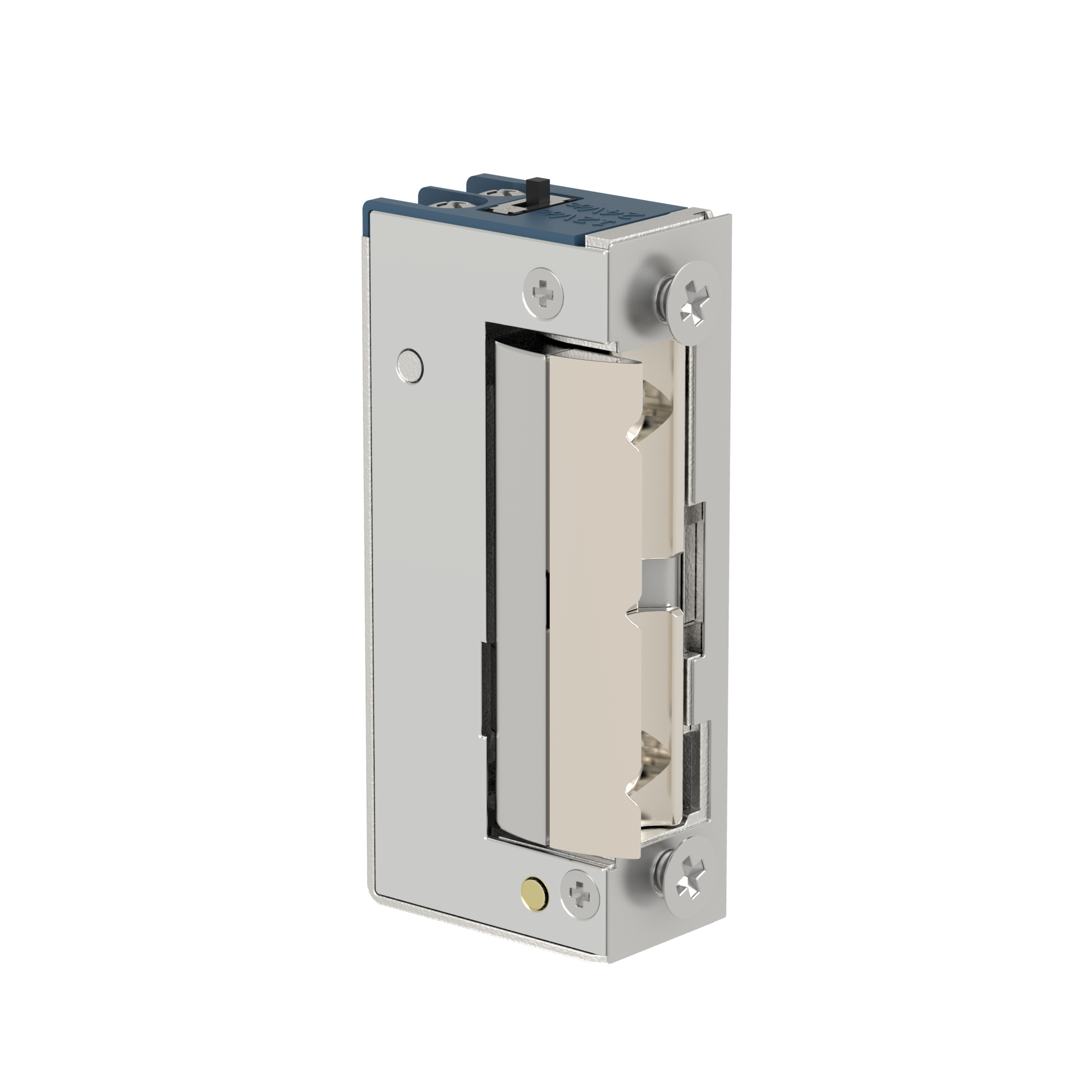

- Standard (blue terminal strip)
- Fail-safe (red terminal strip)
COLORS FOR ELECTRONICS

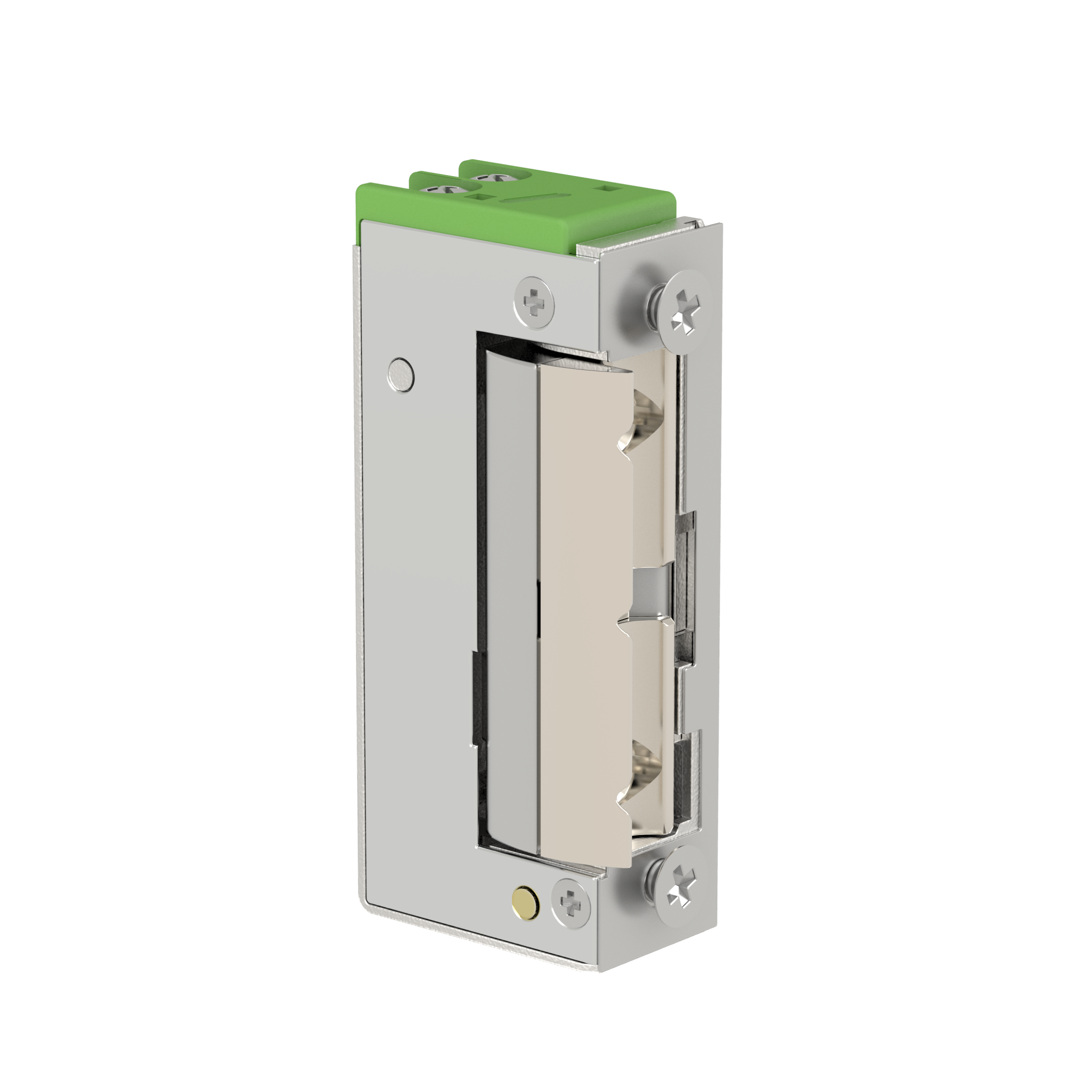

- Standard (green terminal strip)
- Fail-safe (black terminal strip)
B (6-14V AC/DC)
T (12V DC) Timed
Closing resistance: 5,800N
Multiple latches and covers available
Electronic
Z (8-30V AC/DC ED100%)
Closing resistance 5,800N
Multiple latches and covers available
Safety electronics
Z (8-30V AC/DC ED100%)
Closing resistance: 7,500N
Multiple latches and covers available
Heavy-duty electronic
Z (8-30V AC/DC ED100%)
Closing resistance: 10,000N
Multiple latches and covers available
Fire resistant electronics
Z (8-30V AC/DC ED100%)
Ei 90
Closing resistance: 10,000N
Multiple latches and covers available
Weatherproof electronics
Z (8-30V AC/DC ED100%)
IP68
Closing resistance 5,800N, 7,500N, 10,000N
Multiple latches and covers available
Universal
X (10-24V AC/DC)
Y (22-28V AC/DC)
Closing resistance: 5,800N
Multiple latches and covers available
Universal heavy duty
X (10-24V AC/DC)
Y (22-28V AC/DC)
Closing resistance: 10,000N
Multiple latches and covers available
Universal safety
X (10-24V AC/DC)
Y (22-28V AC/DC)
Closing resistance: 7,500N
Multiple latches and covers available
Universal for outdoor use
X (10-24V AC/DC)
Y (22-28V AC/DC)
IP68
Closing resistance 5,800N, 7,500N, 10,000N
Multiple latches and covers available
Universal and fire resistant
X (10-24V AC/DC)
Y (22-28V AC/DC)
Ei 90
Closing resistance: 10,000N
Multiple latches and covers available
Dual
W (12V-24V AC/DC)
Closing resistance: 5,800N
Multiple latches and covers available
Dual security
W (12V-24V AC/DC)
Closing resistance: 7,5000N
Multiple latches and covers available
Dual heavy duty
W (12V-24V AC/DC)
Closing resistance: 10.000N
Multiple latches and covers available
Dual fire resistant
W (12V-24V AC/DC)
Ei 90
Closing resistance: 10.000N
Multiple latches and covers available
Security
B (6-14V AC/DC)
T (12V DC) Timed
Closing resistance: 7,500N
Multiple latches and covers available
Heavy duty
B (6-14V AC/DC)
T (12V DC) Timed
Closing resistance: 10,000N
Multiple latches and covers available
For outdoor use
B (6-14V AC/DC)
T (12V DC) Timed
IP68
Closing resistance: 5.800N. 7,500N, 10,000N
Multiple latches and covers available
Fire resistant
B (6-14V AC/DC)
T (12V DC) Timed
Ei 90
Closing resistance: 10.000N
Multiple latches and covers available
