An Emergency Exit like our EN 13637 Series TE Emergency Terminal is an access designed to allow the quick, safe, and controlled evacuation of people in case of risk situations, such as fires, earthquakes, or other emergencies, without interrupting or obstructing the passage of the routes designed for that purpose.
These types of exits are essential in buildings, offices, shopping centers, or other spaces with significant capacity.
The main characteristics that an emergency exit must have are:
- Easy access and use – It must be visible, free of obstacles, and easy to open.
- Clear signage – Indicated with luminous or fluorescent signs to be quickly identified.
- Leads to a safe place – It must lead to a meeting point or protected area away from danger.
- Regulation and maintenance – It must comply with safety regulations (such as UNE EN 13637) and be kept in optimal conditions.
Electrically Controlled Emergency Exit Systems
Electrically controlled emergency exit systems are very useful solutions in cases where:
- Surveillance is needed on evacuation routes (knowing the status of the doors).
- When control of the doors on evacuation routes is desired to prevent misuse (especially in crowded places like supermarkets, hospitals, residences, museums…).
- When a locking element is required that does not cancel the emergency exit.
These systems combine locking and unlocking technology to allow quick and effective opening when necessary. Their operation is based on electrical mechanisms that keep the doors closed under normal conditions, but in the event of an emergency or a power failure, ensure the immediate release of access. Additionally, they can be integrated with alarms, fire detection systems, and access controls for efficient security management in buildings.
Its regulation is covered by standards such as EN 13637 (UNE-EN 13637:2016), which defines the performance, reliability, and compatibility requirements with other security systems.
Necessary Elements
To establish a proper electrically controlled exit system and ensure smooth passage in evacuation routes, the following elements are needed:
Locking Elements: The electric locking element keeps the door in a safe state. For example, a maglock, an electric panic strike, or a motorised lock are elements that remain unlocked without electrical current.

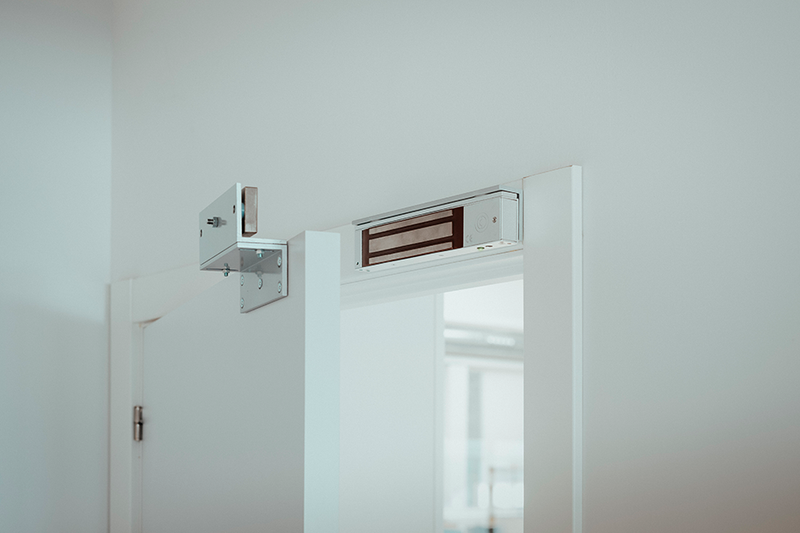

Example of a Maglock from the M Series of Openers & Closers.
Control Elements: Devices or electronic systems responsible for coordinating and managing the opening of emergency exits during an evacuation. These elements act as the "brain" of the system, connecting the exit doors with alarm systems and other security devices.
Signaling Elements: Electronically controlled push buttons are unlocking elements that, when connected to the control unit, ensure proper evacuation in case of emergency. They incorporate acoustic and visual signaling elements at a distance no greater than 1 meter.
It is essential that the manufacturer provides the tests and certificates as a whole, to ensure compliance with accessibility and evacuation.
TE Series – Emergency Terminal EN 13637. Solution for Evacuation Routes
The TE Series from Openers & Closers is an emergency door control terminal combined with an emergency button in a single device.

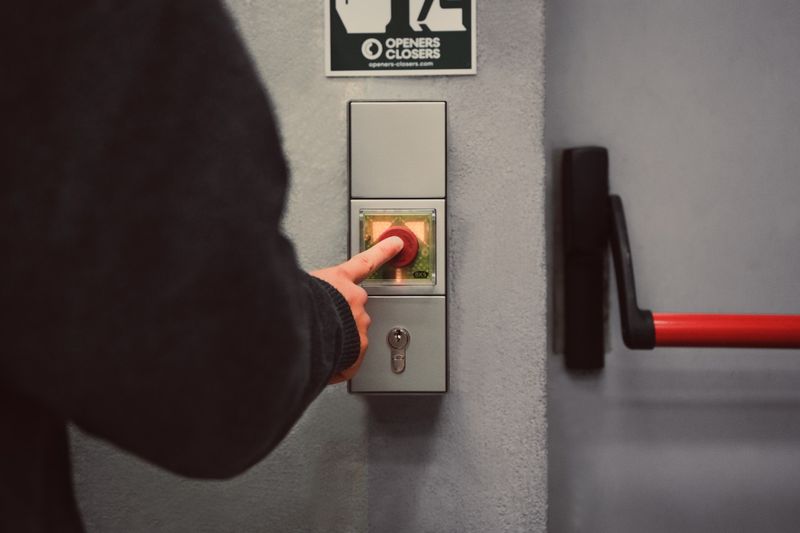

Series TE: Combination of Emergency Terminal and emergency button.
Authorized emergency exit lock system
This device prevents unauthorized exits to the evacuation area, and in emergency situations, allows for instant unlocking with just the press of a button.
Evacuation route signaling
Our Emergency Terminal incorporates visual and/or acoustic signaling elements at a distance no greater than 1 meter, ensuring immediate and effective communication in critical moments.

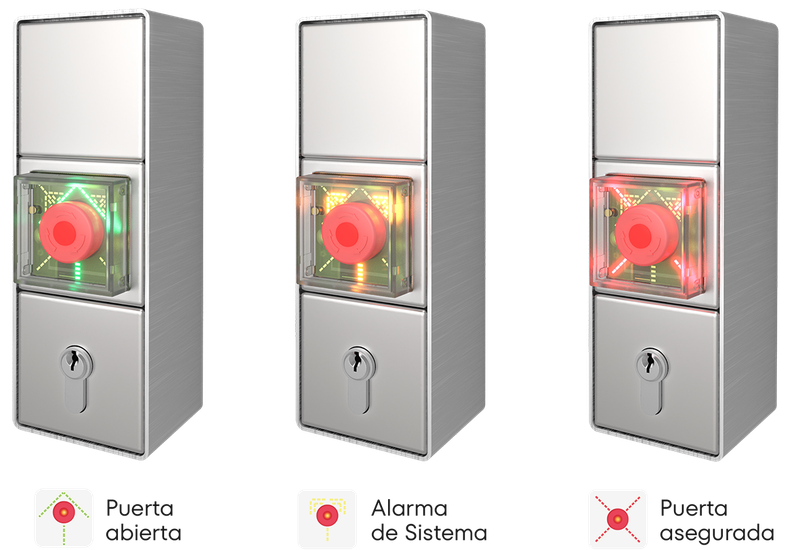

Visual and/or acoustic signaling to ensure immediate and effective communication in emergency situations.
Exceptional resistance
The exclusive steel casing of our emergency terminals offers maximum resistance and an elegant design.
Bus Coupler
To manage the building efficiently and ensure secure control, it is essential to connect all systems through the building's bus. This allows for intelligent monitoring and facilitates the work of security personnel.
Modular structure
Thanks to its modular design, our Emergency Terminal EN 13637 Series TE adapts to each emergency exit. Additionally, in case of failure, it allows for easy identification of defective components, ensuring minimal downtime and rapid system restoration.

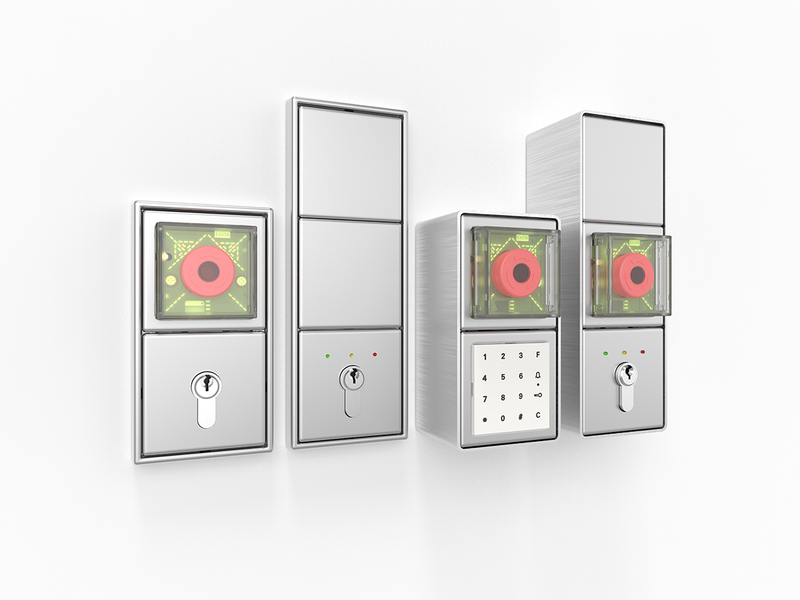

Modular structure that adapts to each emergency exit. Option to embed or overlay.
Simple installation
The TE terminal is easily installed and includes a tamper protection system. Its configuration can be done locally via a USB interface or centrally through a bus cable.
Control Elements
To complement the evacuation system, we provide all the essential components to ensure proper installation and optimize the evacuation system of an emergency exit door.
Management Software: We offer online visualization and configuration software, which facilitates the management of different areas of the building. Its intuitive design and easy configuration make it one of the most accessible and easy-to-use solutions.

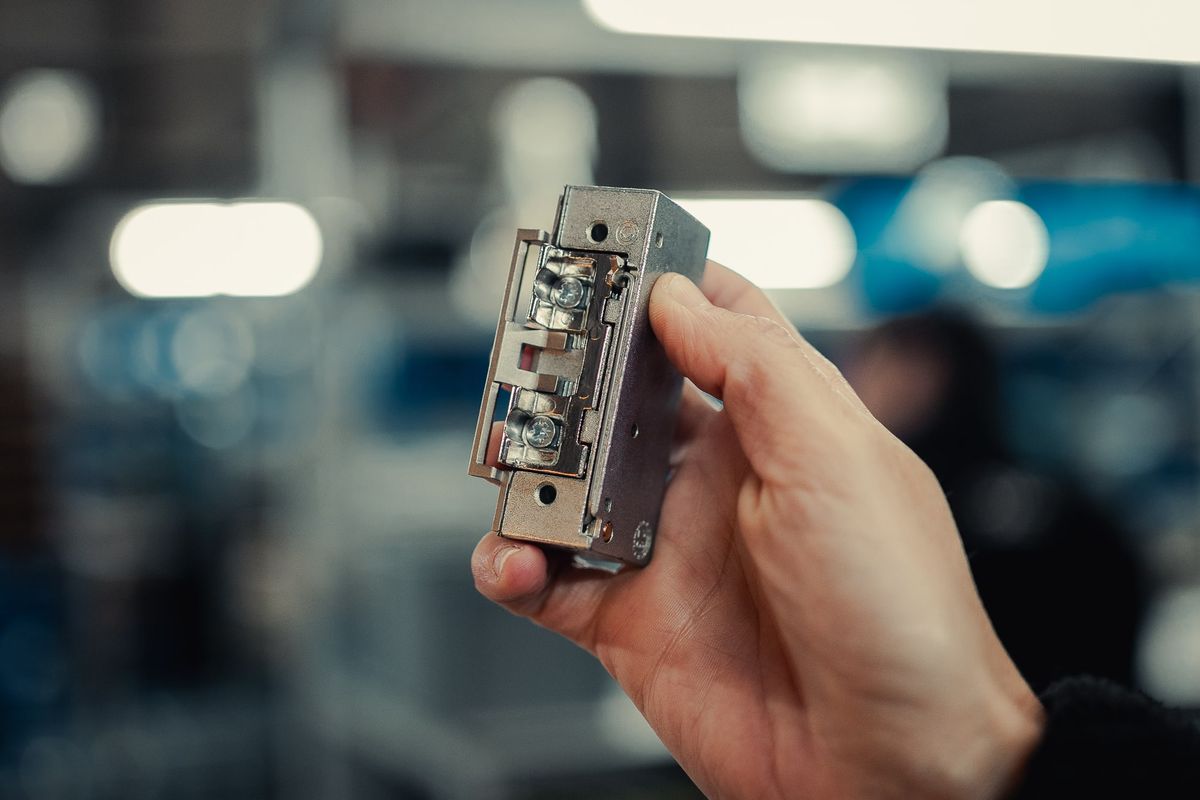

Mechanical Locking Systems: The electric locking mechanisms keep the door in a secure position. They may include electromagnetic locks, electric strikes for panic doors, or motorised locks. To ensure their effectiveness and reliability, it is essential that these devices comply with Positive Security standards.
In Conclusion
The TE Series of Emergency Terminals from Openers & Closers is a reliable and efficient solution for managing evacuation routes. Thanks to its advanced technology and intuitive design, it ensures optimal control and safe evacuation in any emergency situation.
