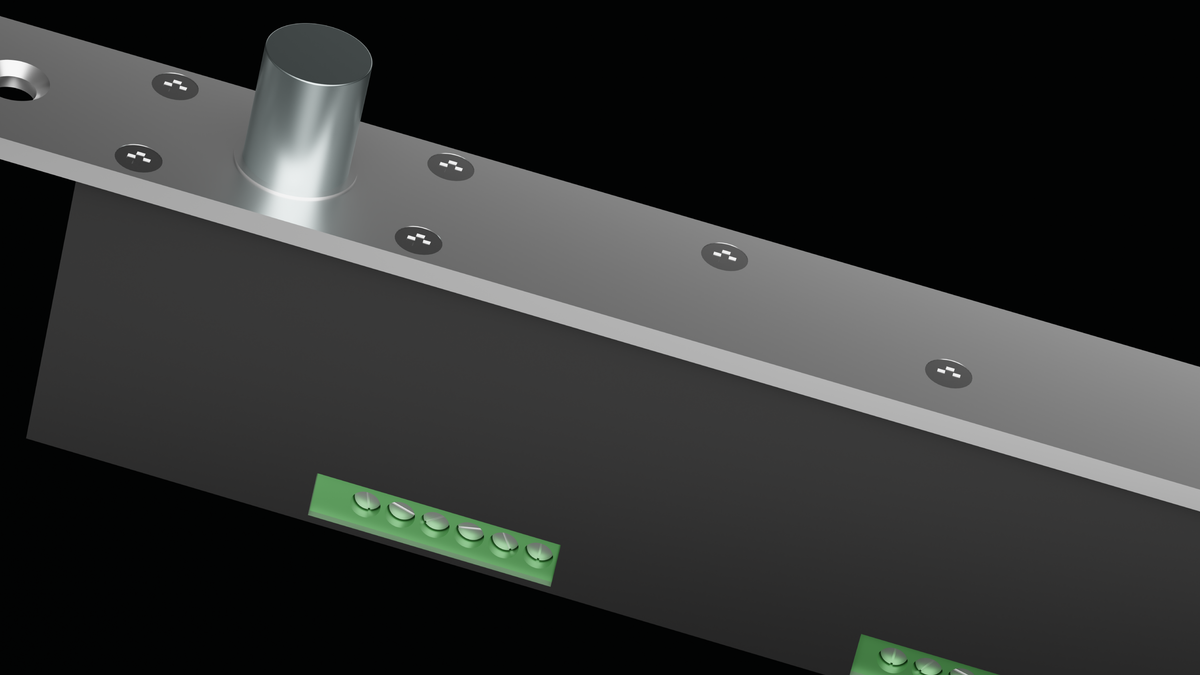

Series BO
The Solution for Interlock Doors
BO is a durable and versatile electropiston lock available in Fail-Secure and Fail-Safe versions.
Complete interconnectivity with other devices is ensured with dual connection strips that allow the lock to operate as a component within a larger access control system. The BO can also be connected directly to other BO units to create an interlock system, without the need for a separate relay.
Design

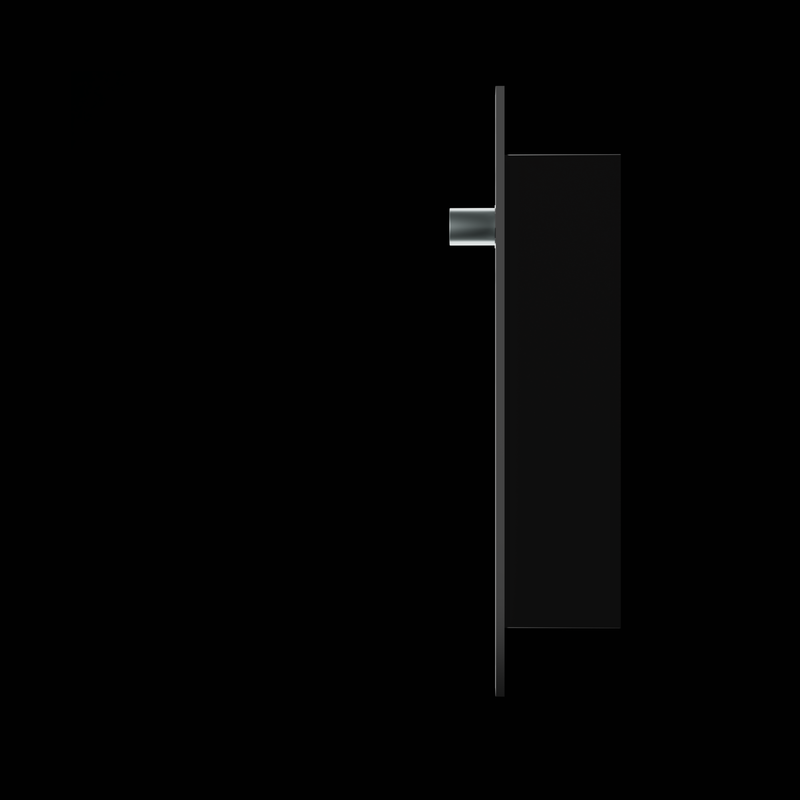

Ultra Slim Body
The Series BO's ultra slim 22mm recess-mounted body fits in narrow door profiles, and houses innovative electronics for precise control and monitoring of the lock's status.
100% reversible, it is designed to easily adapt to different environments and buildings.
Double Monitoring
Advanced Security
Series BO monitors in real-time the status of both the door and the bolt position, ensuring the most secure locking mechanism.
Additionally, the magnetic contact on the strike plate reliably monitors if the door is open or closed, adding an extra layer of security for interlock applications.
Total Flexibility
The BO models allow configurable opening via a timer of 0, 2.5, 5, and 8 seconds to suit different applications.
Both models operate on 12V or 24V DC power supplies, making them simple to adapt to different systems.
Anti-Vandalism

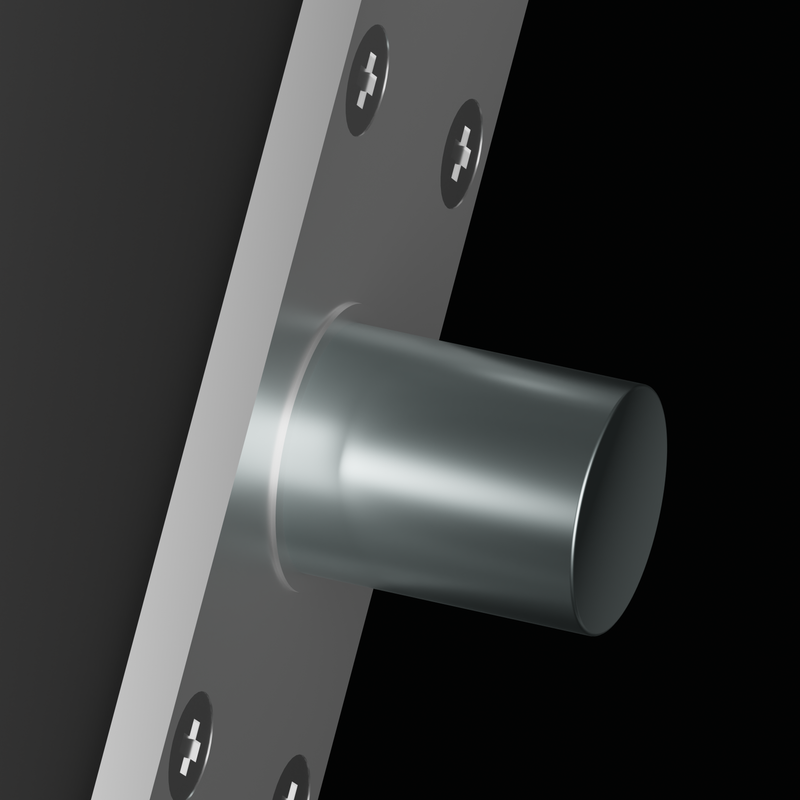

Solid Bolt
The solid steel bolt adds an extra layer of security to prevent vandalism and also has an internal mechanism that locks it to prevent movement from unauthorized tampering.

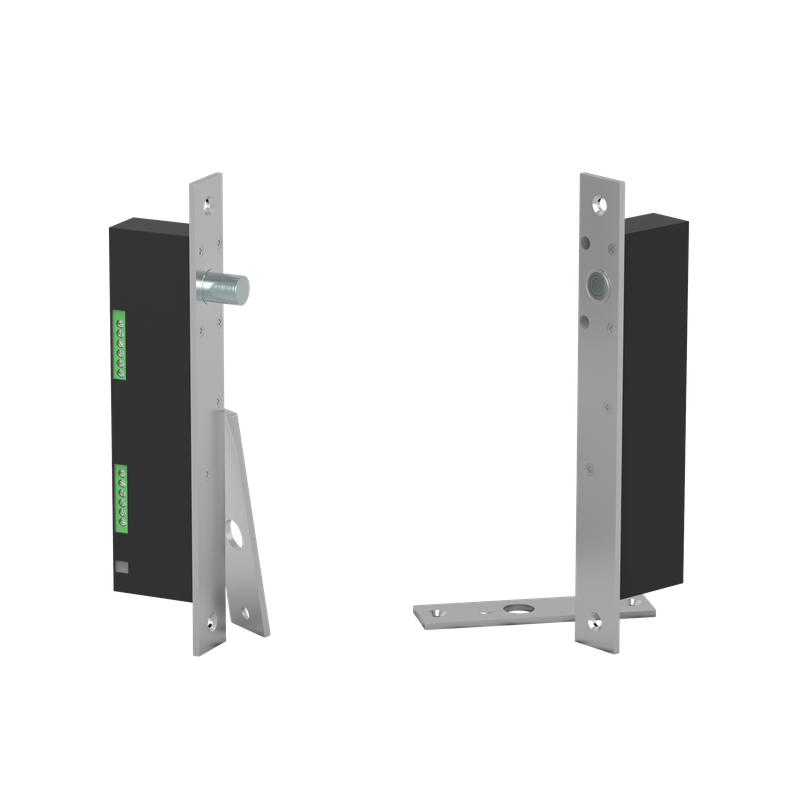

Series BO Models

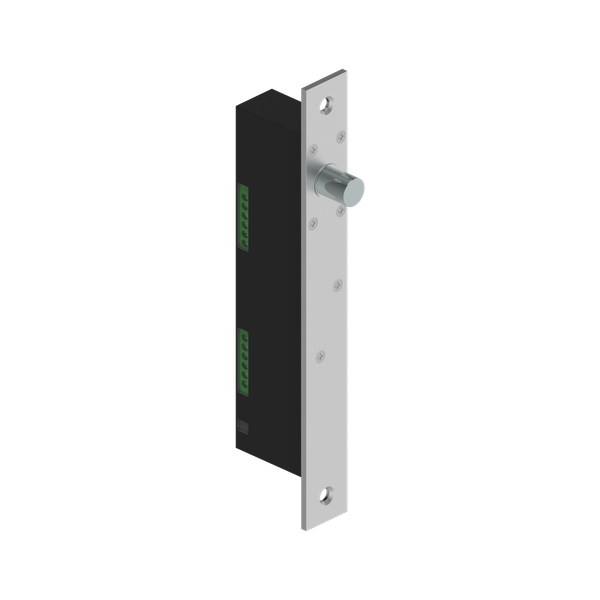

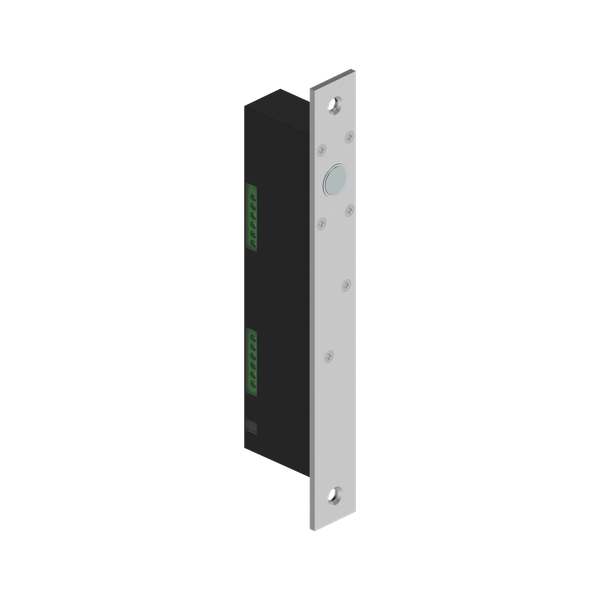

Series BO is available in Fail-Secure and Fail-Safe versions, with a slim 25mm design and stainless steel construction.
Contact us
Request Series BO Information
Contact us for further technical or pricing information. Our technical team will work with you to find the best models and configurations for your project.
