A1BASIC3517SX

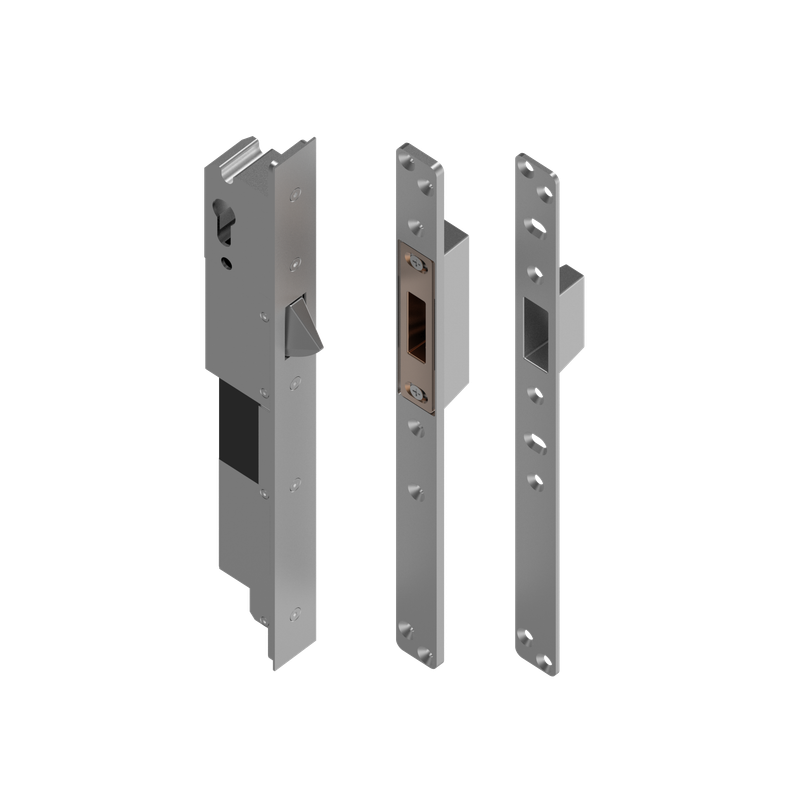

Series A High Security Electromechanical Mortise Lock Fail-secure 24-50V DC 35mm Backset
Product Details
- Nominal Voltage
- 24-50V DC
- Power
- 3.6 W
- Function
- Fail-secure
- Installation Type
- Recess Mounted
- Operating Temperature
- -25ºC − +70ºC
- Door Status
- Yes
- Bolt Status
- Yes
- Bolt type
- Pyramidal
- Access control unlocking
- Yes
- Principal Material
- Stainless Steel
Measurements
- Block
- 379 x 34 x 53.5 mm
- Counterplate
- 375 x 30 x 25 mm
- Backset
- 35 mm
