DHUSW
DHUSW Electromagnetic Lock recess and/or surface mounted 600N 12/24V DC Small
Description
The DHUSW is a small, recess and/or surface-mounted electromagnetic lock in 12/24V DC. Available in Black or White finish. All DH models feature a 600N maximum holding force and are certified for fire doors to the EN 1155 standard (0370-CPR-1178).
Product Details
- Nominal Voltage
- 12V/24V DC
- Closing Force
- 600 N
- Power
- 2.4 W
- Installation Type
- Recess and/or surface mounted
- Colour
- Black
- Suitable for Fire/Smoke Protection Doors
- Fire/Smoke
Measurements
- Block
- 93.6 x 80 x 26 mm
Documents and Resources
Instruction Manuals
Versions
Showing 12 Products
DHUSWK
Series DH Electromagnetic Lock recess and/or surface mounted 600N 12V/24V DC Black

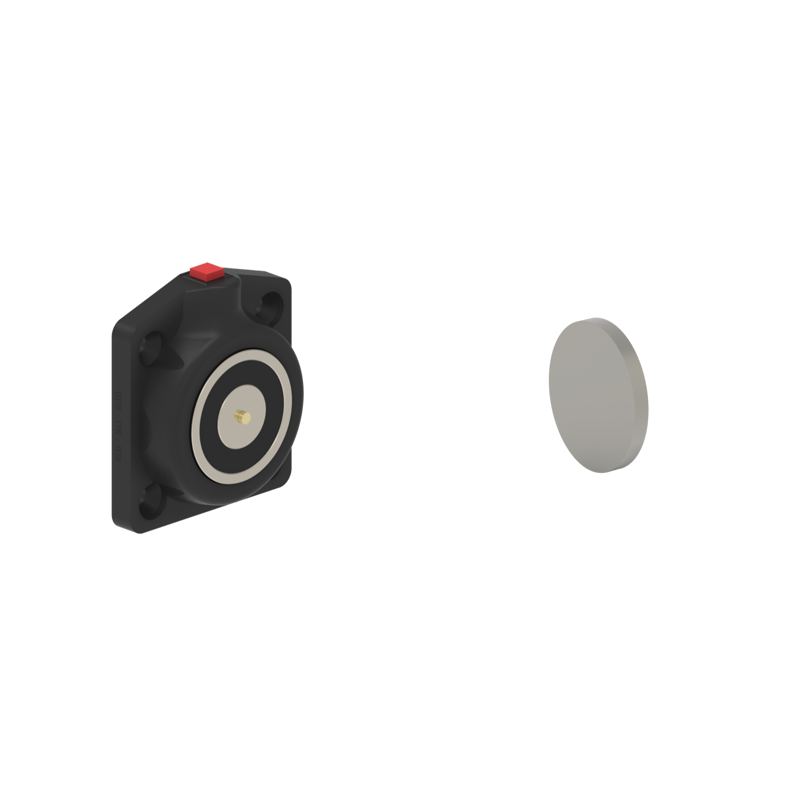

DHUSWKC1
Series DH Electromagnetic Lock recess and/or surface mounted 600N 12V/24V DC Black with C1 counterplate

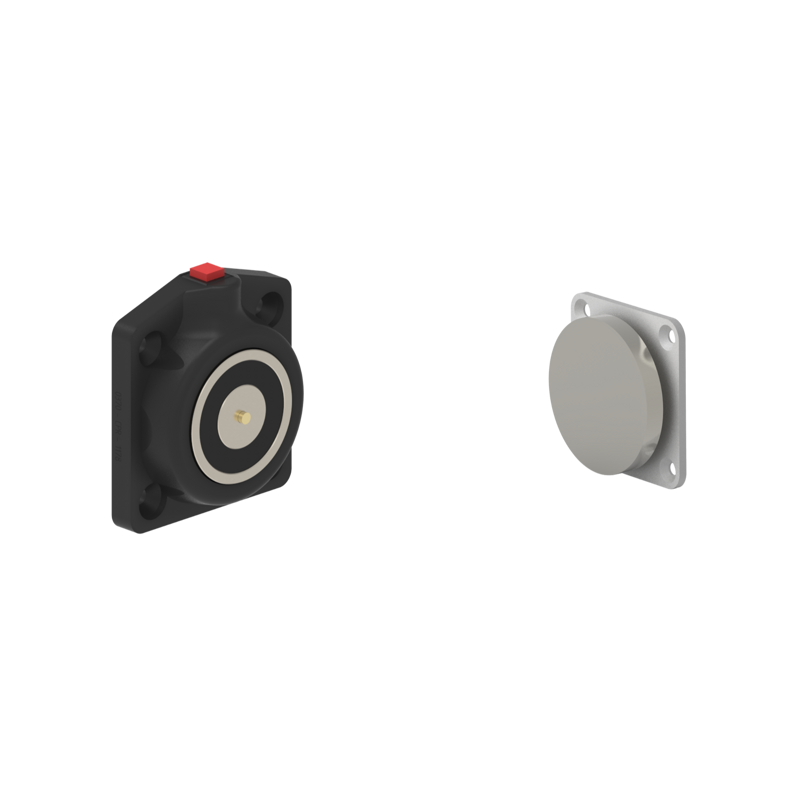

DHUSWKC2
Series DH Electromagnetic Lock recess and/or surface mounted 600N 12V/24V DC Black with C2 counterplate

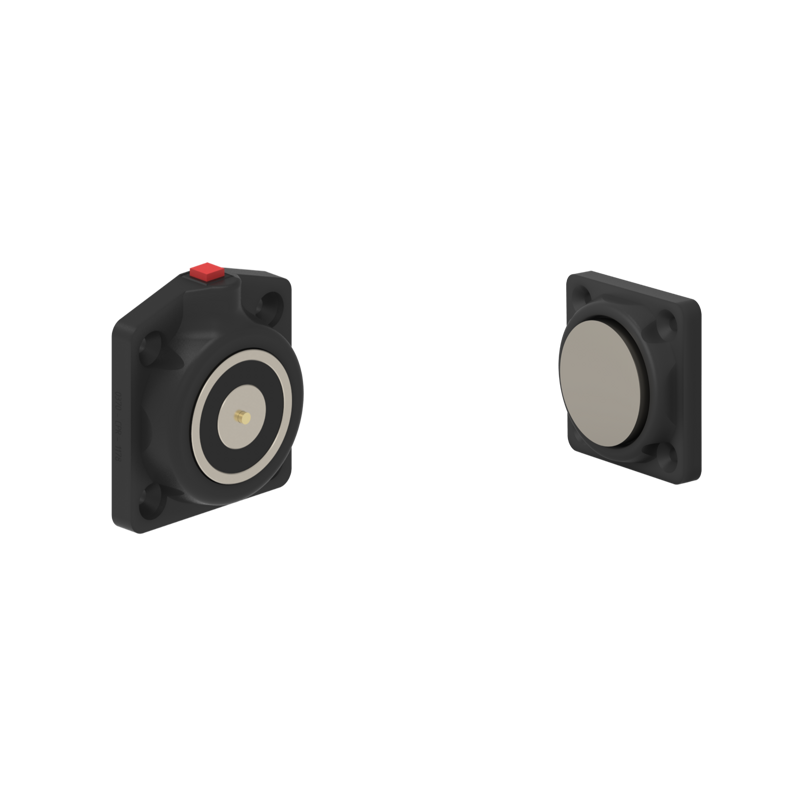

DHUSWKC3
Series DH Electromagnetic Lock recess and/or surface mounted 600N 12V/24V DC Black with C3 counterplate

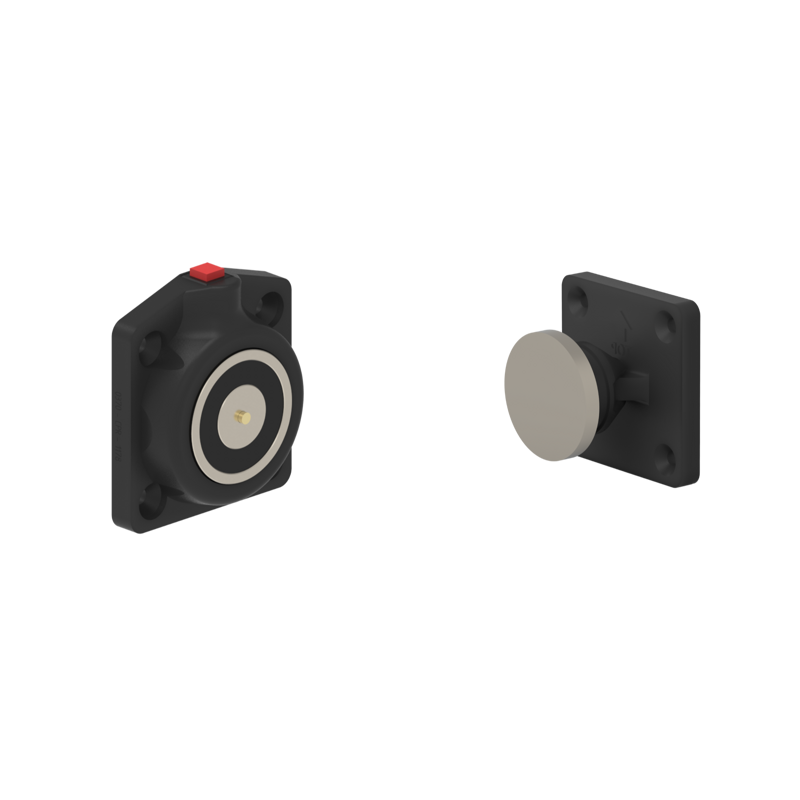

DHUSWKC4
Series DH Electromagnetic Lock recess and/or surface mounted 600N 12V/24V DC Black with C4 counterplate

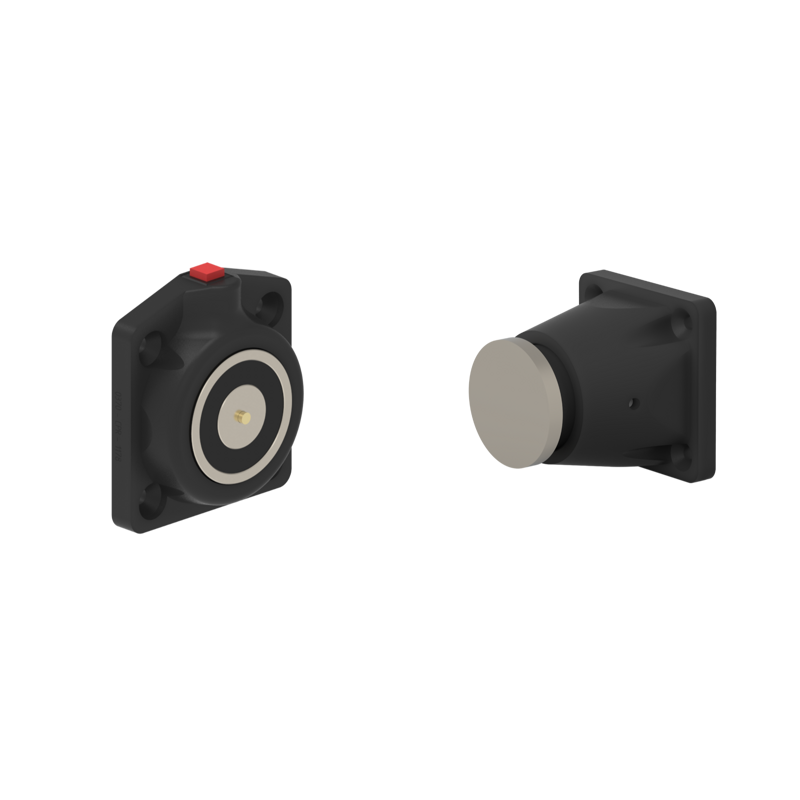

DHUSWKC5
Series DH Electromagnetic Lock recess and/or surface mounted 600N 12V/24V DC Black with C5 counterplate
DHUSWW
Series DH Electromagnetic Lock recess and/or surface mounted 600N 12V/24V DC White

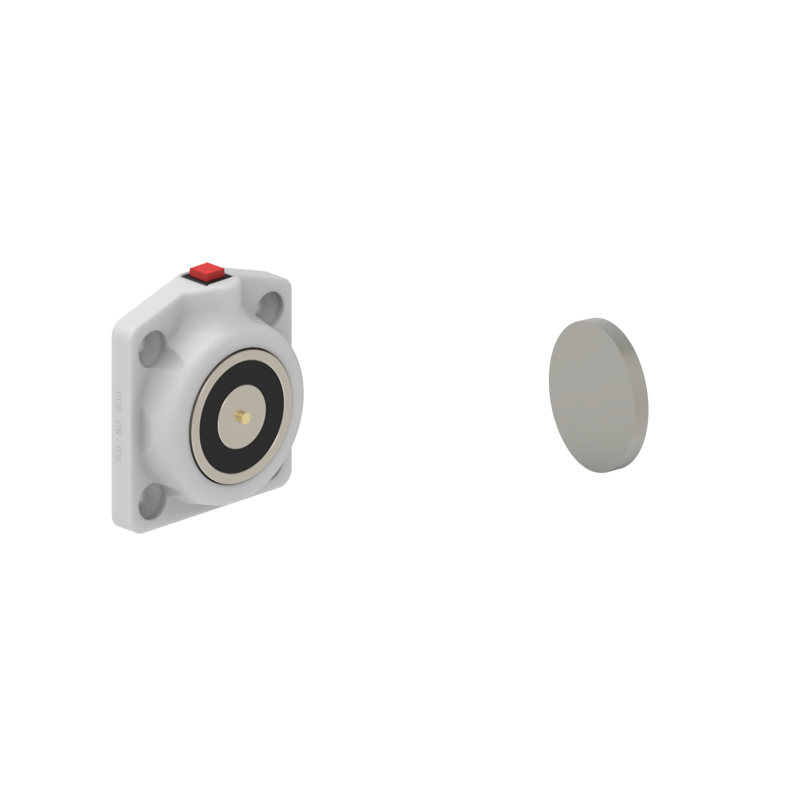

DHUSWWC1
Series DH Electromagnetic Lock recess and/or surface mounted 600N 12V/24V DC White with C1 counterplate

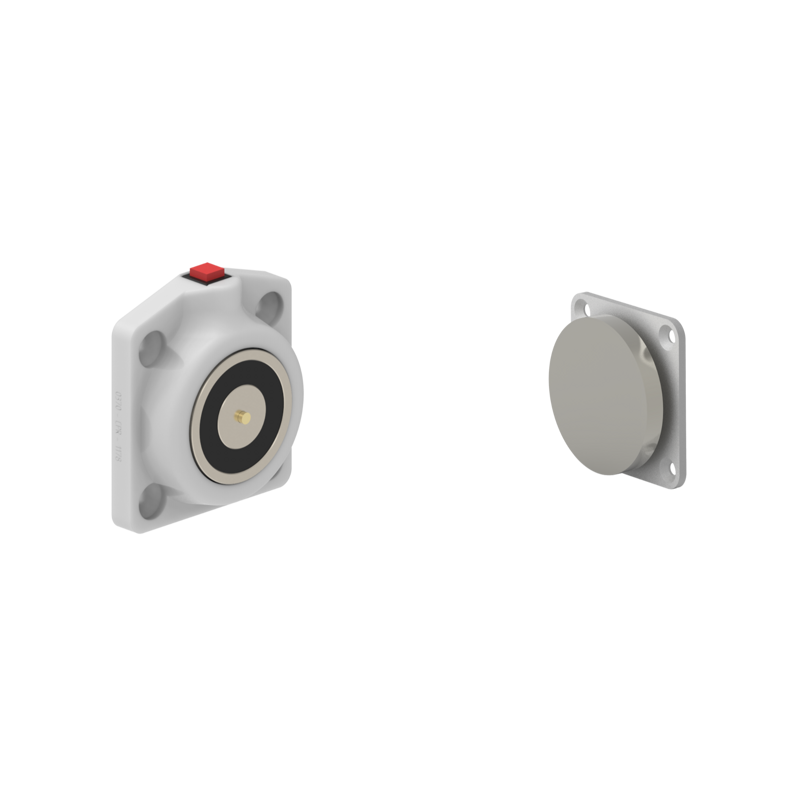

DHUSWWC2
Series DH Electromagnetic Lock recess and/or surface mounted 600N 12V/24V DC White with C2 counterplate

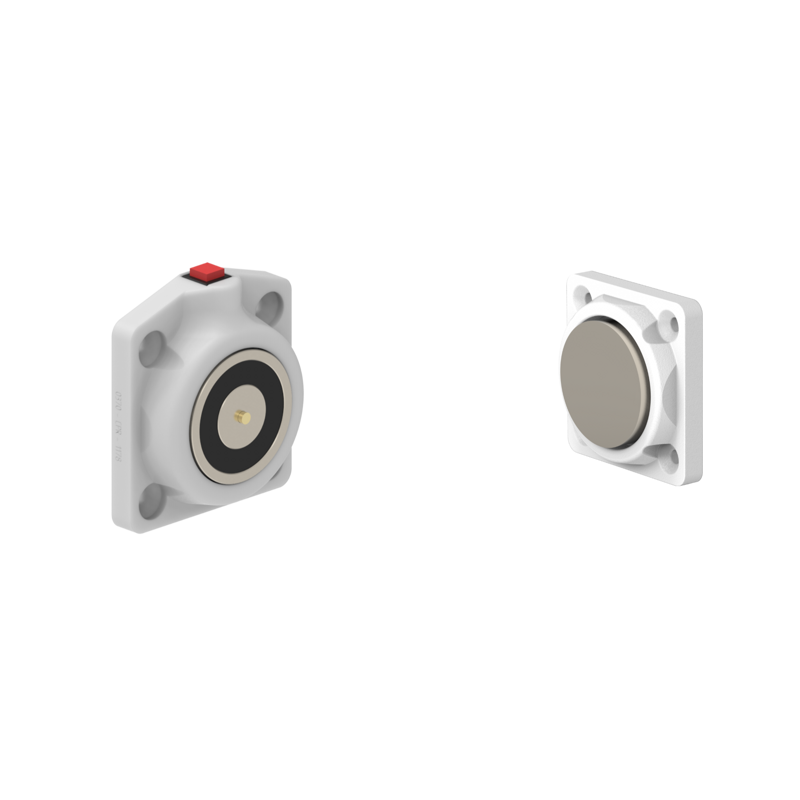

DHUSWWC6
Series DH Electromagnetic Lock recess and/or surface mounted 600N 12V/24V DC White with C6 counterplate

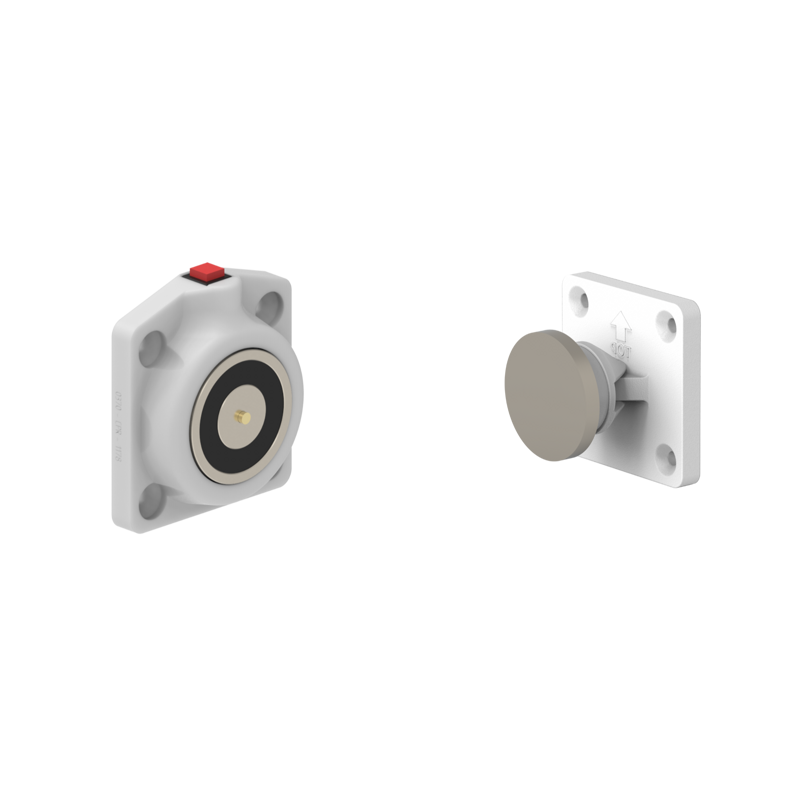

DHUSWWC7
Series DH Electromagnetic Lock recess and/or surface mounted 600N 12V/24V DC White with C7 counterplate

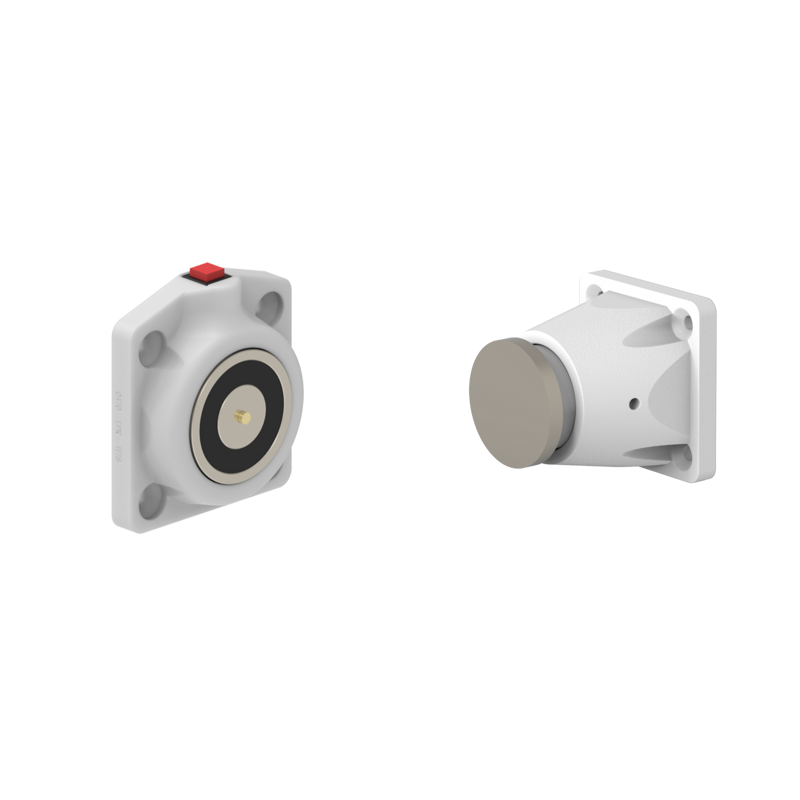

DHUSWWC8
Series DH Electromagnetic Lock recess and/or surface mounted 600N 12V/24V DC White with C8 counterplate
DHUSW Accessories
Showing 15 Products
DHE01
Series DH Wall Box for recess-mounted electromagnetic locks Black
DHF01
Series DH 19cm Extension with 180º rotation for surface-mounted electromagnetic locks Black
DHF02
Series DH 19cm Extension with 180º rotation for surface-mounted electromagnetic locks White
DHF10
Series DH 15cm Extension for surface-mounted electromagnetic locks Black
DHF20
Series DH 15cm Extension for surface-mounted electromagnetic locks White
DHF11
Series DH 15cm Extension + 19cm Extension set with 180º rotation for surface-mounted electromagnetic locks Black
DHF22
Series DH 15cm Extension + 19cm Extension set with 180º rotation for surface-mounted electromagnetic locks White
C1
Series DH 0.7cm Counterplate for electromagnetic locks
C2
Series DH 1.5cm Counterplate for electromagnetic locks
C3
Series DH 2.3cm Counterplate with plastic support for electromagnetic locks Black
C4
Series DH 5cm Counterplate with plastic support for electromagnetic locks Black
C5
Series DH 9cm Counterplate with plastic support for electromagnetic locks Black
C6
Series DH 2.3cm Counterplate with plastic support for electromagnetic locks White
C7
Series DH 5cm Counterplate with plastic support for electromagnetic locks White
