OTS634

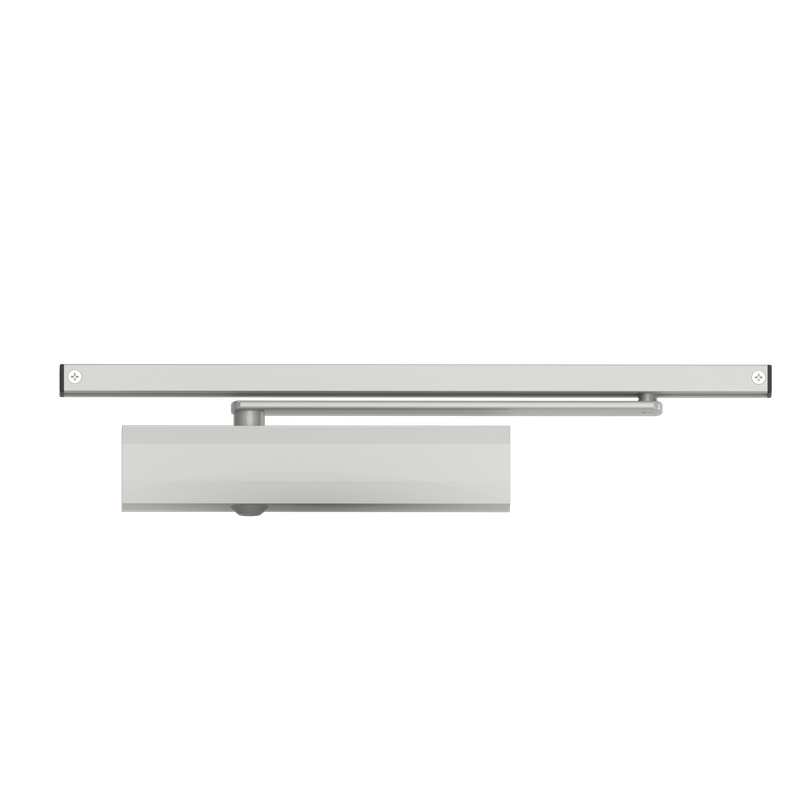

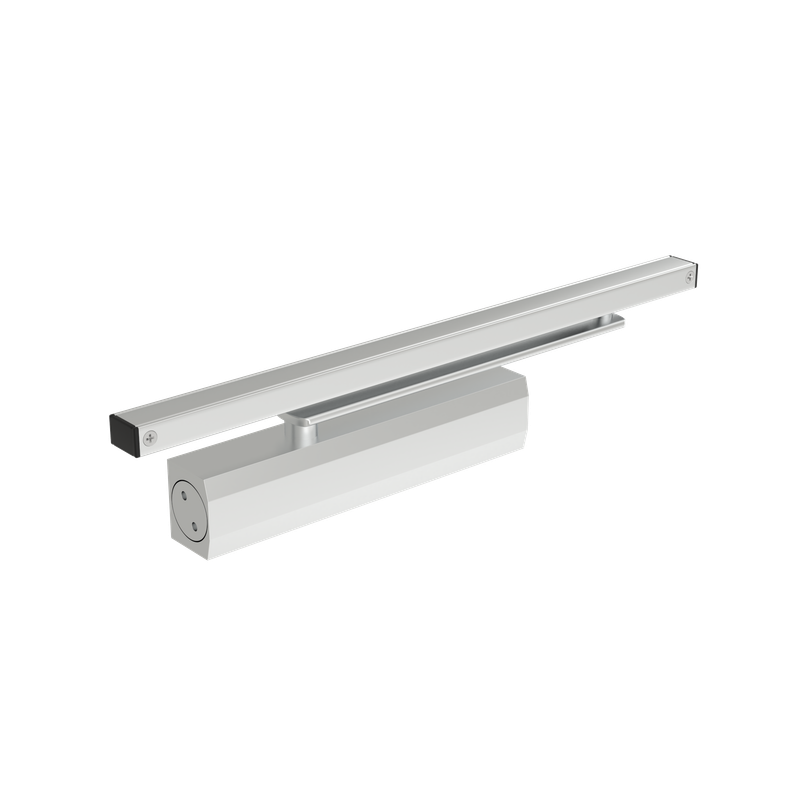

OTS634 Overhead Door Closer with sliding guide Force 2-4 suitable for fire doors
Description
Overhead door closer with sliding guide. Adjustable force range of 2-4 according to EN 1154. Suitable for use with fire doors. Available with a retention function which allows the door to be held open at a chosen point, preventing it from closing automatically or without the arm. Available in White, Grey and Black finish.
Product Details
- Arm Type
- Sliding guide with retention
- Closing Force Range
- 2-4 EN
- Adjustable Closing Speed
- Yes
- Adjustable Latching Action
- Yes
- Maximum Opening Angle
- 180º
- Opening Damping
- Yes
- Principal Material
- Steel
Measurements
- Measurements
- 60 x 296 x 49 mm
Documents and Resources
Instruction Manuals
Versions
6
Products
OTS634BK
Series OTS Overhead Door Closer with sliding guide Force 2–4 suitable for fire doors Black
OTS634BRK
Series OTS Overhead Door Closer with sliding guide and retention Force 2–4 suitable for fire doors Black
OTS634BRW
Series OTS Overhead Door Closer with sliding guide and retention Force 2–4 White
OTS634BRZ
Series OTS Overhead Door Closer with sliding guide and retention Force 2–4 Grey
OTS634BW
Series OTS Overhead Door Closer with sliding guide Force 2–4 suitable for fire doors White
