OTS210

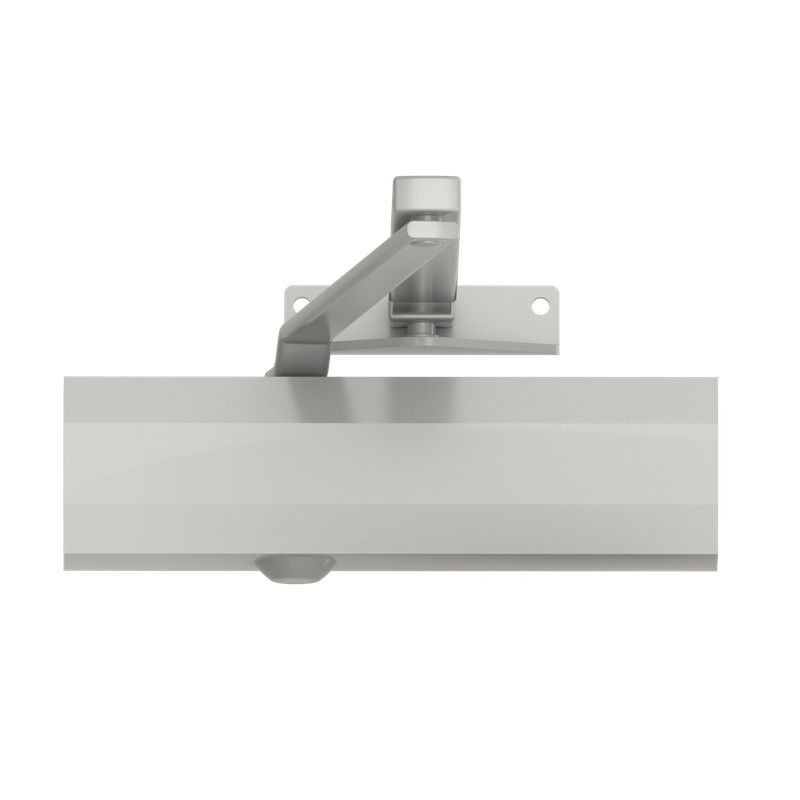

OTS210 Overhead Door Closer with articulated arm Force 2-4 suitable for fire doors
Description
Overhead door closer with articulated arm. Adjustable force range of 2-4 according to EN 1154. Suitable for use with fire doors. Available with a retention function which allows the door to be held open at a chosen point, preventing it from closing automatically or without the articulated arm. Available in White, Grey and Black finish.
Product Details
- Arm Type
- Articulated arm
- Closing Force Range
- 2-4 EN
- Adjustable Closing Speed
- Yes
- Adjustable Latching Action
- Yes
- Maximum Opening Angle
- 180º
- Principal Material
- Steel
Measurements
- Measurements
- 58 x 207 x 44.5 mm
Documents and Resources
Instruction Manuals
Products
Showing 6 Products
OTS210BK
Series OTS Overhead Door Closer with articulated arm Force 2–4 Black
OTS210BRK
Series OTS Overhead Door Closer with articulated arm and retention Force 2–4 Black
OTS210BRW
Series OTS Overhead Door Closer with articulated arm and retention Force 2–4 White
OTS210BRZ
Series OTS Overhead Door Closer with articulated arm and retention Force 2–4 Grey
OTS210BW
Series OTS Overhead Door Closer with articulated arm Force 2-4 White
