CMC047PM

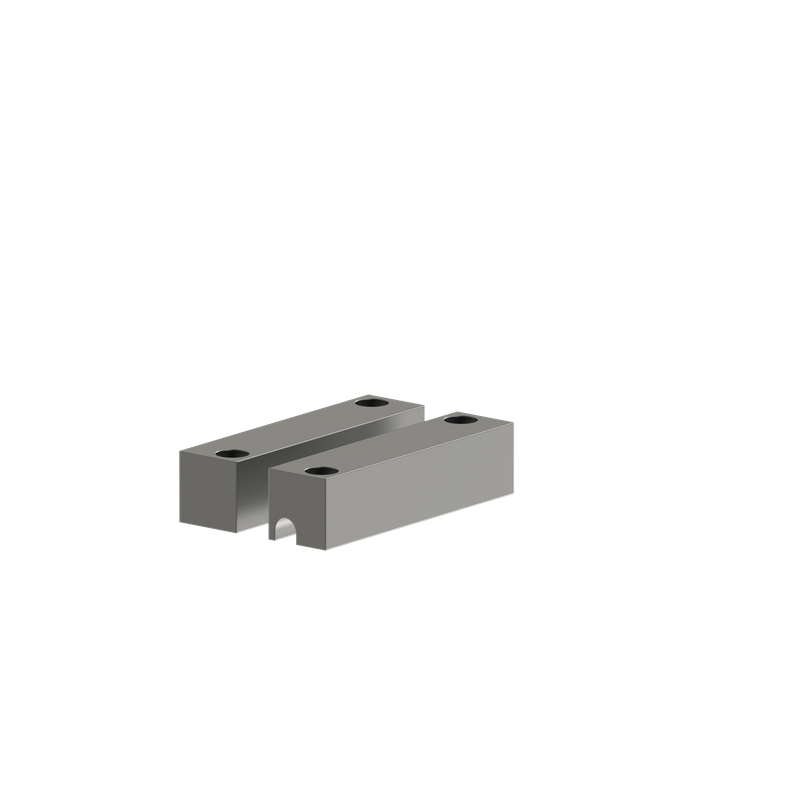

CMC047PM Magnetic Contact surface mounted with magnetic protection with screw terminals
Product Details
- Installation Type
- Surface Mounted
- Ferromagnetic Behaviour
- Ferromagnetic and non-ferromagnetic
- Number of Conductors
- 5
- Operating Temperature
- -10°C − +40°C
- Security Grade
- 3
- Security Class
- II
- Operating Distance
- 15 mm
- Operating Distance (Fe)
- 12 mm
- Colour
- Aluminium
Measurements
- Counterplate
- 18 x 18 x 74 mm
- Counterplate
- 18 x 18 x 74 mm
Documents and Resources
Datasheets
Instruction Manuals
Manuals for this product will be available soon
