CMC046PM24

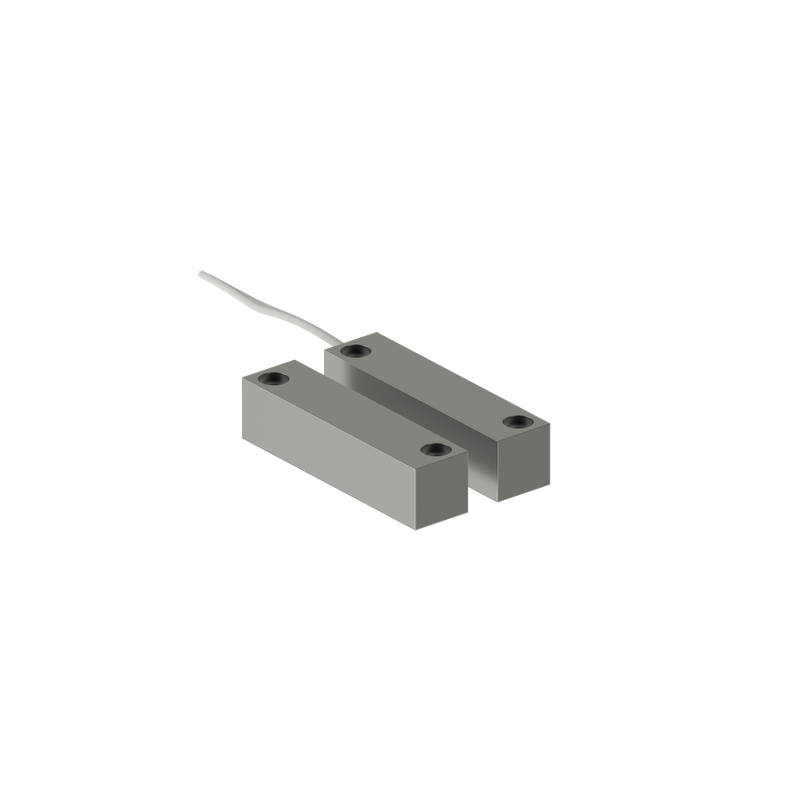

CMC046PM24 Magnetic Contact surface mounted with magnetic protection in die-cast aluminium
Product Details
- Installation Type
- Surface Mounted
- Ferromagnetic Behaviour
- Ferromagnetic and non-ferromagnetic
- Number of Conductors
- 4
- Operating Temperature
- -25°C − +60°C
- Security Grade
- 3
- Security Class
- IV
- Operating Distance
- 15 mm
- Operating Distance (Fe)
- 12 mm
- Cable Length
- 1.5 m
- Colour
- Aluminium
Measurements
- Counterplate
- 18 x 18 x 74 mm
- Counterplate
- 18 x 18 x 74 mm
