TE2B

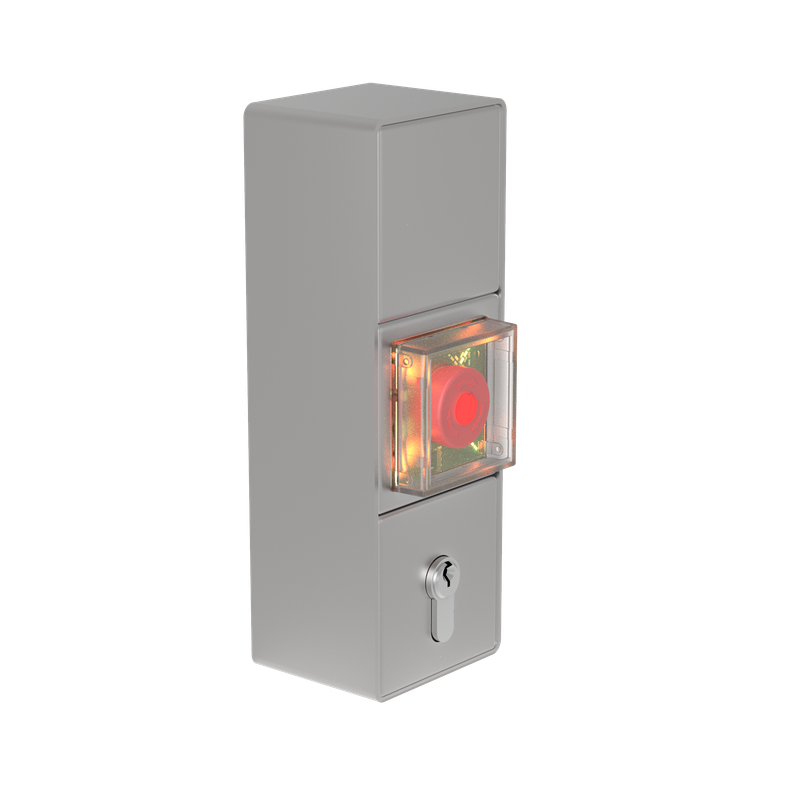

TE2B Emergency Exit Terminal Surface Mounted 3 Modules
Description
UNE EN 13637 Emergency Exit Terminal for surface mounting with 3 modules. Series TE models are certified according to the UNE EN 13637 standard for electrically controlled exit systems on doors located in evacuation routes. This innovative device not only prevents unauthorized access to the evacuation area but, in emergency situations, enables instant unlocking with just the press of a button, allowing immediate and secure use. Stainless steel housing. Also available in recess mounted versions, and with 2 modules. Equivalent to BKS FTNT10/20.
Product Details
- Nominal Voltage
- 24V DC
- Installation Type
- Surface Mounted
- Max. cable length
- 20 m
- Max. interconnected terminals
- 60
- IP Classification
- IP20
- Principal Material
- Stainless Steel
Measurements
- Measurements
- 216 x 75 x 62 mm
