TE1B

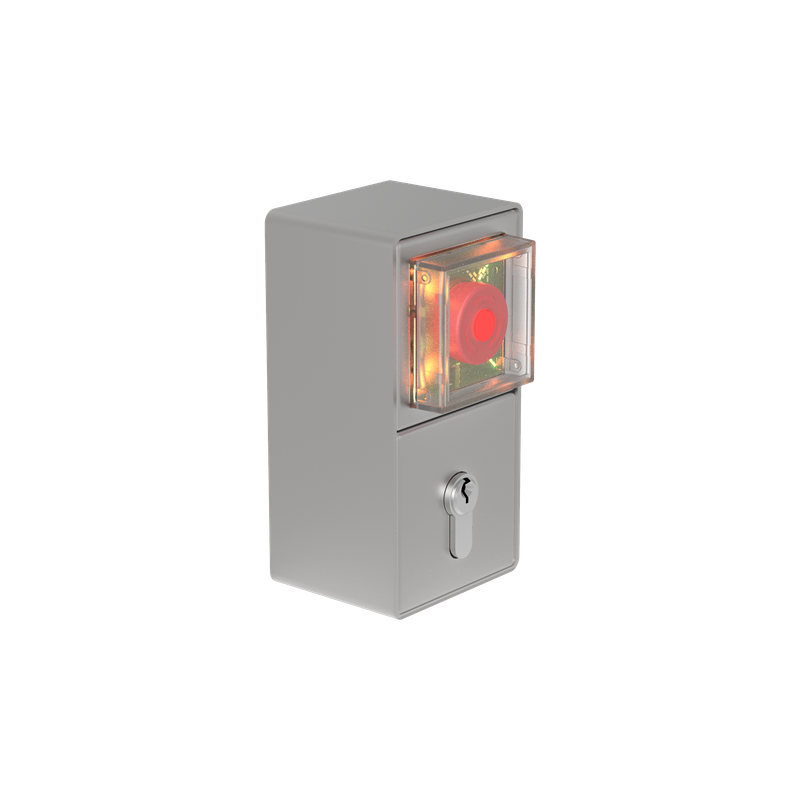

TE1B Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules

Description
UNE EN 13637 Emergency Exit Terminal for surface mounting with 2 modules. Series TE models are certified according to the UNE EN 13637 standard for electrically controlled exit systems on doors located in evacuation routes. This innovative device not only prevents unauthorized access to the evacuation area but, in emergency situations, enables instant unlocking with just the press of a button, allowing immediate and secure use. Stainless steel housing. Also available in recess mounted versions, and with 3 modules. Equivalent to BKS FTNT10/20.
Product Details
- Nominal Voltage
- 24V DC
- Installation Type
- Surface Mounted
- LED
- No
- Max. cable length
- 20 m
- Max. interconnected terminals
- 60
- IP Classification
- IP20
- Principal Material
- Stainless Steel
Measurements
- Measurements
- 146 x 75 x 62 mm
Documents and Resources
Instruction Manuals
Configure Model TE1B
Products
Showing 28 Products

TE1B011
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88 Cylinder) 24V DC

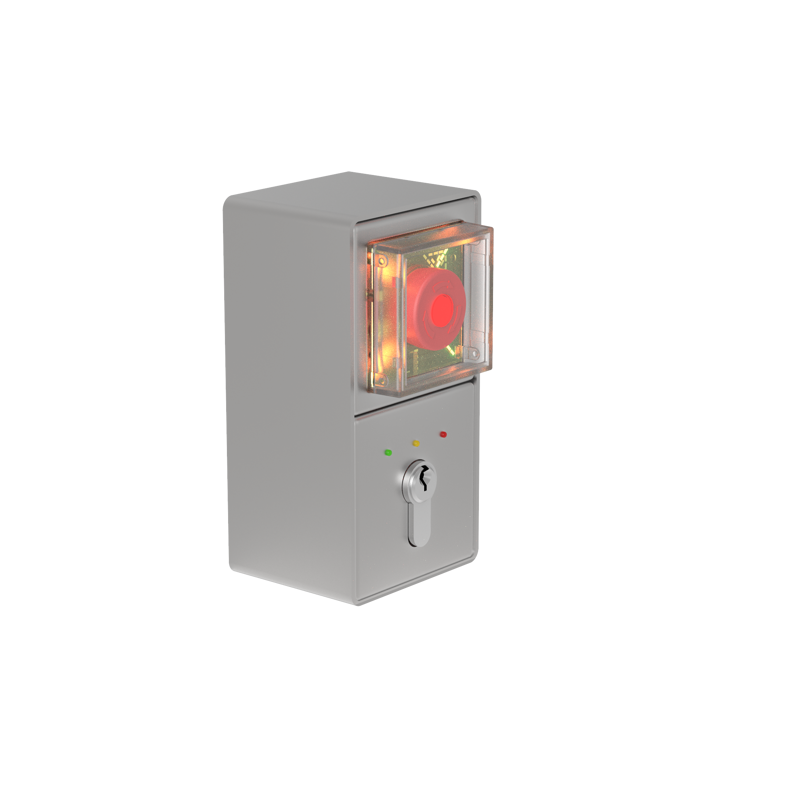

TE1B012
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88 Cylinder with LED) 24V DC

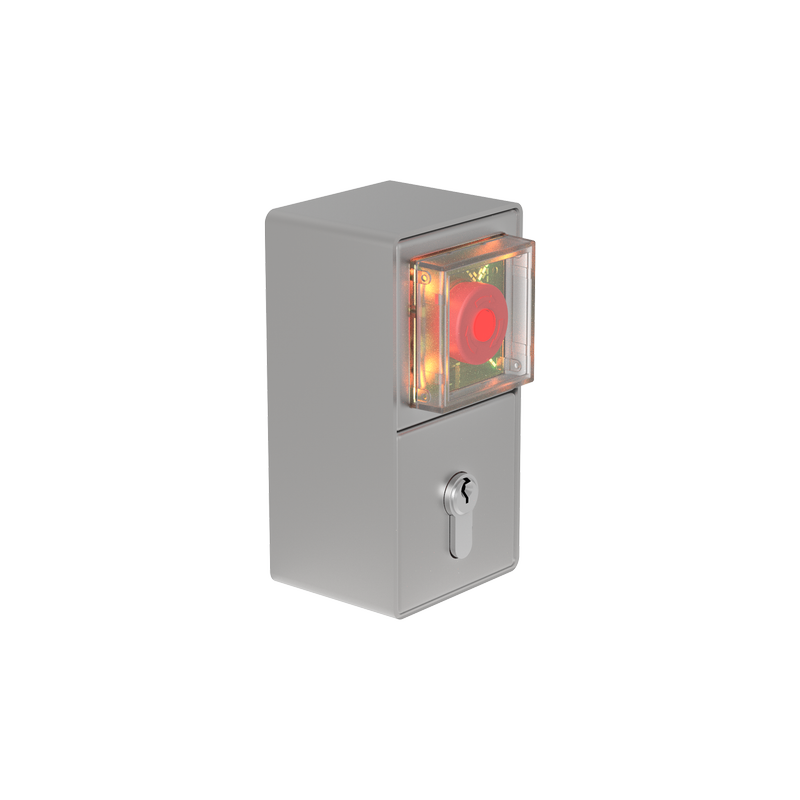

TE1B013
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88IG Cylinder) 24V DC

TE1B014
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88IG Cylinder with LED) 24V DC

TE1B015
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + Coded Keypad) 24V DC

TE1B01A
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + Cover for PZ88 Cylinder) 24V DC

TE1B01B
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + LED Cover for PZ88 Cylinder) 24V DC

TE1B021
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88 Cylinder) 24V DC

TE1B022
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88 Cylinder with LED) 24V DC

TE1B023
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88IG Cylinder) 24V DC

TE1B024
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88IG Cylinder with LED) 24V DC

TE1B025
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + Coded Keypad) 24V DC

TE1B02A
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + Cover for PZ88 Cylinder) 24V DC

TE1B02B
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + LED Cover for PZ88 Cylinder) 24V DC

TE1B111
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88 Cylinder) + Power Supply 230VAC/24VDC 0,4 A

TE1B112
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88 Cylinder with LED) + Power Supply 230VAC/24VDC 0.4 A

TE1B113
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88IG Cylinder) + Power Supply 230VAC/24VDC 0,4 A

TE1B114
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88IG Cylinder with LED) + Power Supply 230VAC/24VDC 0.4 A

TE1B115
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + Coded Keypad) + Power Supply 230VAC/24VDC 0.4 A

TE1B11A
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + Cover for PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A

TE1B11B
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + LED Cover for PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A

TE1B121
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A

TE1B122
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88 Cylinder with LED) + Power Supply 230VAC/24VDC 0.4 A

TE1B123
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88IG Cylinder) + Power Supply 230VAC/24VDC 0.4 A

TE1B124
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88IG Cylinder with LED) + Power Supply 230VAC/24VDC 0.4 A

TE1B125
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + Coded Keypad) + Power Supply 230VAC/24VDC 0.4 A

TE1B12A
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + Cover for PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A

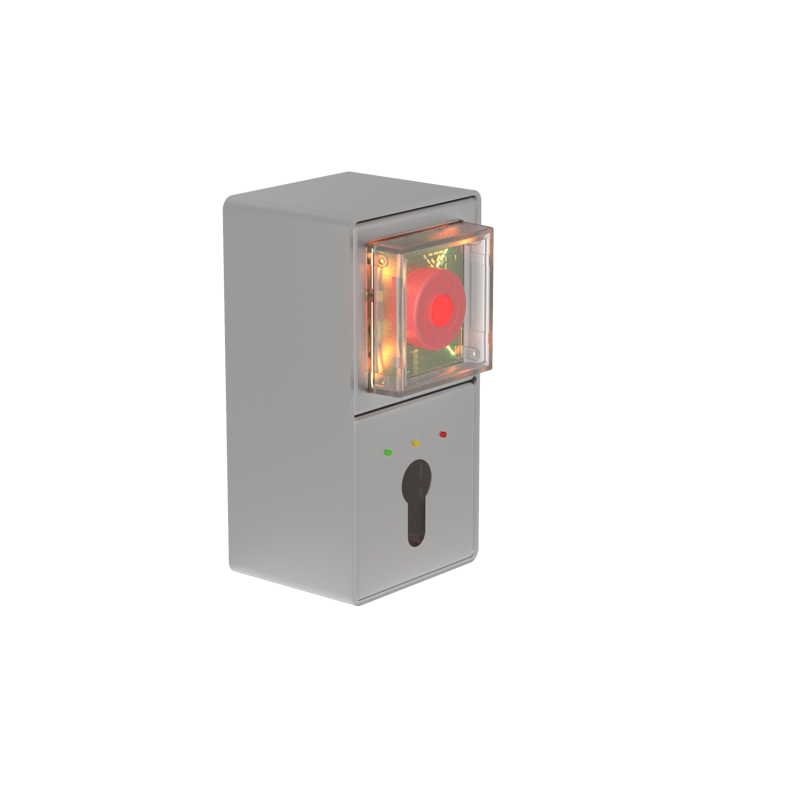

TE1B12B
Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + LED Cover for PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A
TE1B Accessories
Showing 4 Products

TEV2L
Series TE Electromagnetic Lock 2000N 12/24V DC certified EN 13637 for Series TE with L bracket

TEV2Z
Series TE Electromagnetic Lock 2000N 12/24V DC certified EN 13637 for Series TE with Z bracket

TEV5L
Series TE Electromagnetic Lock 2000N 12/24V DC certified EN 13637 for Series TE with L bracket
