TE1A

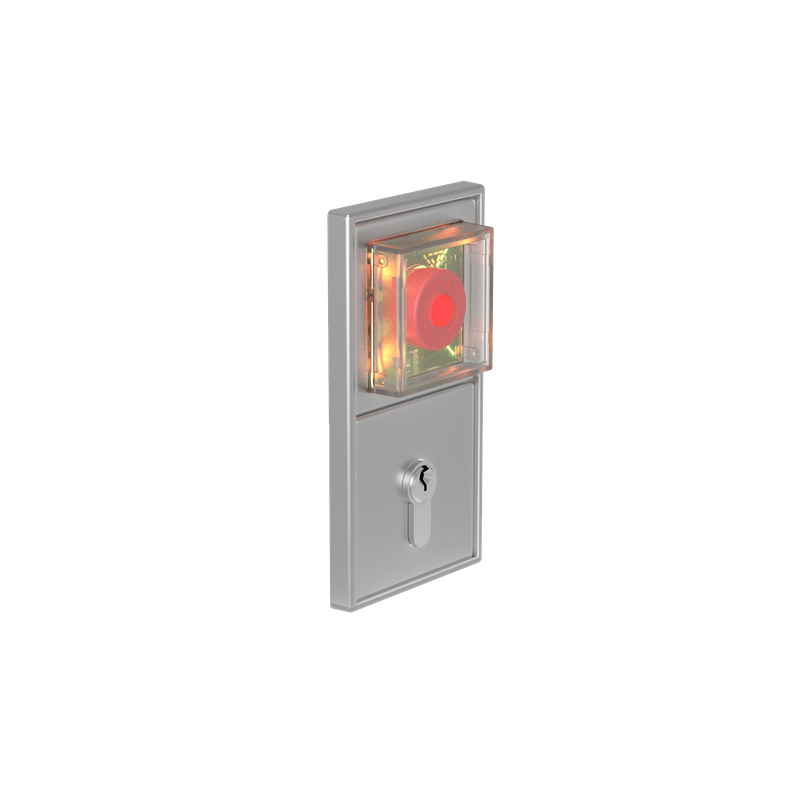

TE1A Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules
Description
UNE EN 13637 Emergency Exit Terminal for recess mounting with 2 modules. Series TE models are certified according to the UNE EN 13637 standard for electrically controlled exit systems on doors located in evacuation routes. This innovative device not only prevents unauthorized access to the evacuation area but, in emergency situations, enables instant unlocking with just the press of a button, allowing immediate and secure use. Stainless steel housing. Also available in surface mounted versions, and with 3 modules. Equivalent to BKS FTNT10/20.
Product Details
- Nominal Voltage
- 24V DC
- Installation Type
- Recess Mounted
- LED
- No
- Max. cable length
- 20 m
- Max. interconnected terminals
- 60
- IP Classification
- IP20
- Principal Material
- Stainless Steel
Measurements
- Measurements
- 150 x 79 x 10 mm
Documents and Resources
Instruction Manuals
Configure Model TE1A
Products
Showing 28 Products

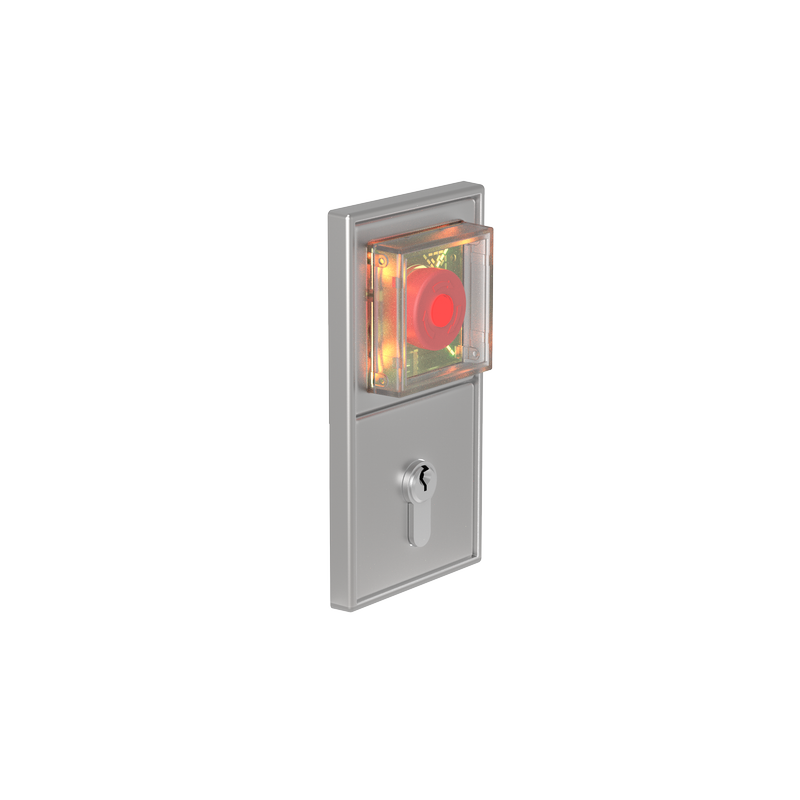

TE1A011
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + PZ88 Cylinder) Recess Mounted 24V DC
TE1A012
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + PZ88 Cylinder with LED) 24V DC
TE1A013
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + PZ88IG Cylinder) 24V DC
TE1A014
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + PZ88IG Cylinder with LED) 24V DC

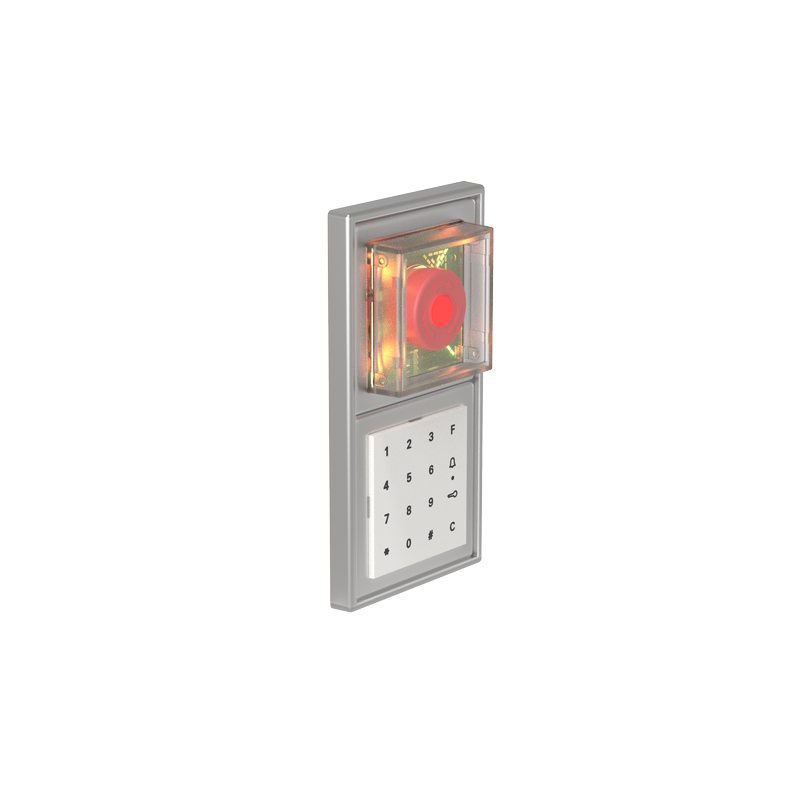

TE1A015
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + Coded Keypad) 24V DC
TE1A01A
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + Cover for PZ88 Cylinder) 24V DC
TE1A01B
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + LED Cover for PZ88 Cylinder) 24V DC
TE1A021
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Master Button + PZ88 Cylinder) 24V DC
TE1A022
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Master Button + PZ88 Cylinder with LED) 24V DC
TE1A023
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Master Button + PZ88IG Cylinder) 24V DC
TE1A024
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Master Button + PZ88IG Cylinder with LED) 24V DC
TE1A025
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Master Button + Coded Keypad) 24V DC
TE1A02A
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Master Button + Cover for PZ88 Cylinder) 24V DC
TE1A02B
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Master Button + LED Cover for PZ88 Cylinder) 24V DC
TE1A111
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + PZ88 Cylinder) + Power Supply 230VAC/24VDC 0,4 A
TE1A112
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + PZ88 Cylinder with LED) + Power Supply 230VAC/24VDC 0,4 A
TE1A113
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + PZ88IG Cylinder) + Power Supply 230VAC/24VDC 0,4 A
TE1A114
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + PZ88IG Cylinder with LED) + Power Supply 230VAC/24VDC 0,4 A
TE1A115
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + Coded Keypad) + Power Supply 230VAC/24VDC 0,4 A
TE1A11A
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + Cover for PZ88 Cylinder) + Power Supply 230VAC/24VDC 0,4 A
TE1A11B
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Button + LED Cover for PZ88 Cylinder) + Power Supply 230VAC/24VDC 0,4 A
TE1A121
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Master Button + PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A
TE1A122
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Master Button + PZ88 Cylinder with LED) + Power Supply 230VAC/24VDC 0.4 A
TE1A123
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Master Button + PZ88IG Cylinder) + Power Supply 230VAC/24VDC 0.4 A
TE1A124
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Master Button + PZ88IG Cylinder with LED) + Power Supply 230VAC/24VDC 0.4 A
TE1A125
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Master Button + Coded Keypad) + Power Supply 230VAC/24VDC 0.4 A
TE1A12A
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Master Button + Cover for PZ88 Cylinder) + Power Supply 230VAC/24VDC 0,4 A
TE1A12B
Series TE Emergency Exit Terminal EN 13637 Recess Mounted 2 Modules (Master Button + LED Cover for PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A
TE1A Accessories
Showing 4 Products
TEV2L
Series TE Electromagnetic Lock 2000N 12/24V DC certified EN 13637 for Series TE with L bracket
TEV2Z
Series TE Electromagnetic Lock 2000N 12/24V DC certified EN 13637 for Series TE with Z bracket
TEV5L
Series TE Electromagnetic Lock 2000N 12/24V DC certified EN 13637 for Series TE with L bracket
