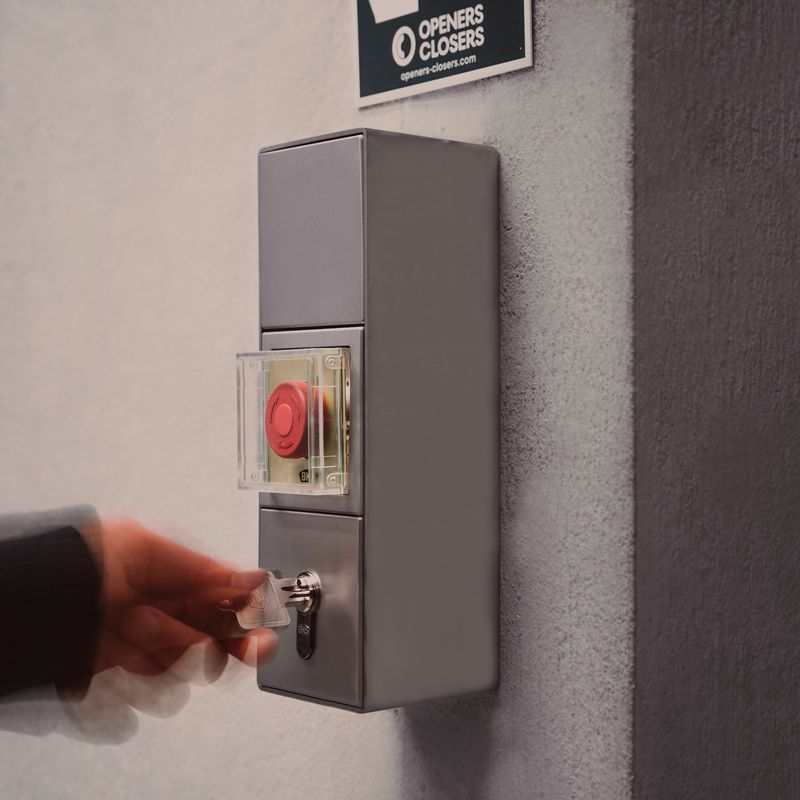

TE1B Emergency Exit Terminal Surface Mounted 2 Modules
TE1B

TE1B Emergency Exit Terminal Surface Mounted 2 Modules

Description

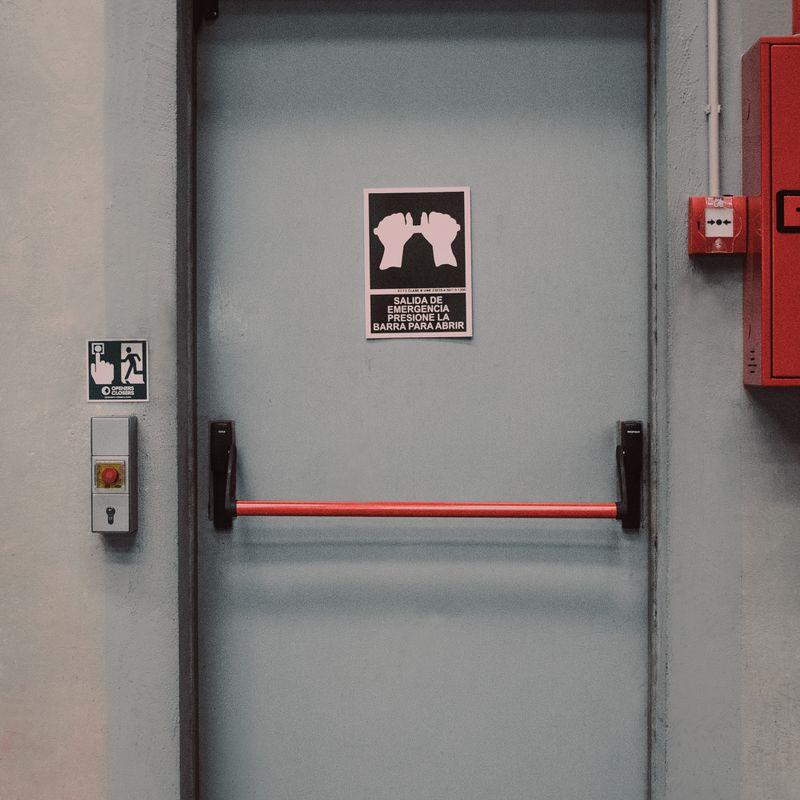

UNE EN 13637 Emergency Exit Terminal for surface mounting with 2 modules. Series TE models are certified according to the UNE EN 13637 standard for electrically controlled exit systems on doors located in evacuation routes. This innovative device not only prevents unauthorized access to the evacuation area but, in emergency situations, enables instant unlocking with just the press of a button, allowing immediate and secure use. Stainless steel housing. Also available in recess mounted versions, and with 3 modules. Equivalent to BKS FTNT10/20.

Product Details

Nominal Voltage
24V DC
Installation Type
Surface Mounted
Max. cable length
20 m
Max. interconnected terminals
60
IP Classification
IP20
Principal Material
Stainless Steel

Measurements

Measurements
146 x 75 x 62 mm

Documents and Resources

Instruction Manuals

Series TE Instruction Manual

Configure Model TE1B

Products

Showing 28 Products
TE1B011 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88 Cylinder) 24V DC

TE1B011

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88 Cylinder) 24V DC

 TE1B012 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88 Cylinder with LED) 24V DC

TE1B012

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88 Cylinder with LED) 24V DC

 TE1B013 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88IG Cylinder) 24V DC

TE1B013

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88IG Cylinder) 24V DC

 TE1B014 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88IG Cylinder with LED) 24V DC

TE1B014

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88IG Cylinder with LED) 24V DC

 TE1B015 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + Coded Keypad) 24V DC

TE1B015

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + Coded Keypad) 24V DC

 TE1B01A Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + Cover for PZ88 Cylinder) 24V DC

TE1B01A

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + Cover for PZ88 Cylinder) 24V DC

 TE1B01B Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + LED Cover for PZ88 Cylinder) 24V DC

TE1B01B

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + LED Cover for PZ88 Cylinder) 24V DC

 TE1B021 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88 Cylinder) 24V DC

TE1B021

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88 Cylinder) 24V DC

 TE1B022 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88 Cylinder with LED) 24V DC

TE1B022

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88 Cylinder with LED) 24V DC

 TE1B023 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88IG Cylinder) 24V DC

TE1B023

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88IG Cylinder) 24V DC

 TE1B024 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88IG Cylinder with LED) 24V DC

TE1B024

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88IG Cylinder with LED) 24V DC

 TE1B025 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + Coded Keypad) 24V DC

TE1B025

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + Coded Keypad) 24V DC

 TE1B02A Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + Cover for PZ88 Cylinder) 24V DC

TE1B02A

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + Cover for PZ88 Cylinder) 24V DC

 TE1B02B Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + LED Cover for PZ88 Cylinder) 24V DC

TE1B02B

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + LED Cover for PZ88 Cylinder) 24V DC

 TE1B111 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88 Cylinder) + Power Supply 230VAC/24VDC 0,4 A

TE1B111

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88 Cylinder) + Power Supply 230VAC/24VDC 0,4 A

 TE1B112 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88 Cylinder with LED) + Power Supply 230VAC/24VDC 0.4 A

TE1B112

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88 Cylinder with LED) + Power Supply 230VAC/24VDC 0.4 A

 TE1B113 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88IG Cylinder) + Power Supply 230VAC/24VDC 0,4 A

TE1B113

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88IG Cylinder) + Power Supply 230VAC/24VDC 0,4 A

 TE1B114 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88IG Cylinder with LED) + Power Supply 230VAC/24VDC 0.4 A

TE1B114

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + PZ88IG Cylinder with LED) + Power Supply 230VAC/24VDC 0.4 A

 TE1B115 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + Coded Keypad) + Power Supply 230VAC/24VDC 0.4 A

TE1B115

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + Coded Keypad) + Power Supply 230VAC/24VDC 0.4 A

 TE1B11A Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + Cover for PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A

TE1B11A

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + Cover for PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A

 TE1B11B Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + LED Cover for PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A

TE1B11B

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Button + LED Cover for PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A

 TE1B121 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A

TE1B121

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A

 TE1B122 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88 Cylinder with LED) + Power Supply 230VAC/24VDC 0.4 A

TE1B122

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88 Cylinder with LED) + Power Supply 230VAC/24VDC 0.4 A

 TE1B123 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88IG Cylinder) + Power Supply 230VAC/24VDC 0.4 A

TE1B123

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88IG Cylinder) + Power Supply 230VAC/24VDC 0.4 A

 TE1B124 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88IG Cylinder with LED) + Power Supply 230VAC/24VDC 0.4 A

TE1B124

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + PZ88IG Cylinder with LED) + Power Supply 230VAC/24VDC 0.4 A

 TE1B125 Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + Coded Keypad) + Power Supply 230VAC/24VDC 0.4 A

TE1B125

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + Coded Keypad) + Power Supply 230VAC/24VDC 0.4 A

 TE1B12A Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + Cover for PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A

TE1B12A

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + Cover for PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A

 TE1B12B Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + LED Cover for PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A

TE1B12B

Series TE Emergency Exit Terminal EN 13637 Surface Mounted 2 Modules (Master Button + LED Cover for PZ88 Cylinder) + Power Supply 230VAC/24VDC 0.4 A
