BO400

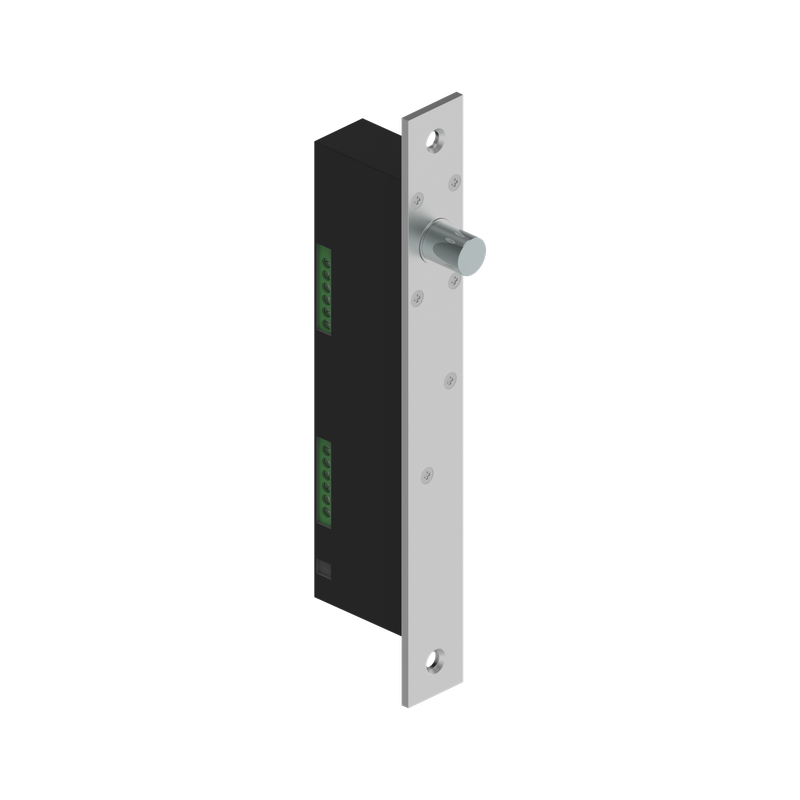

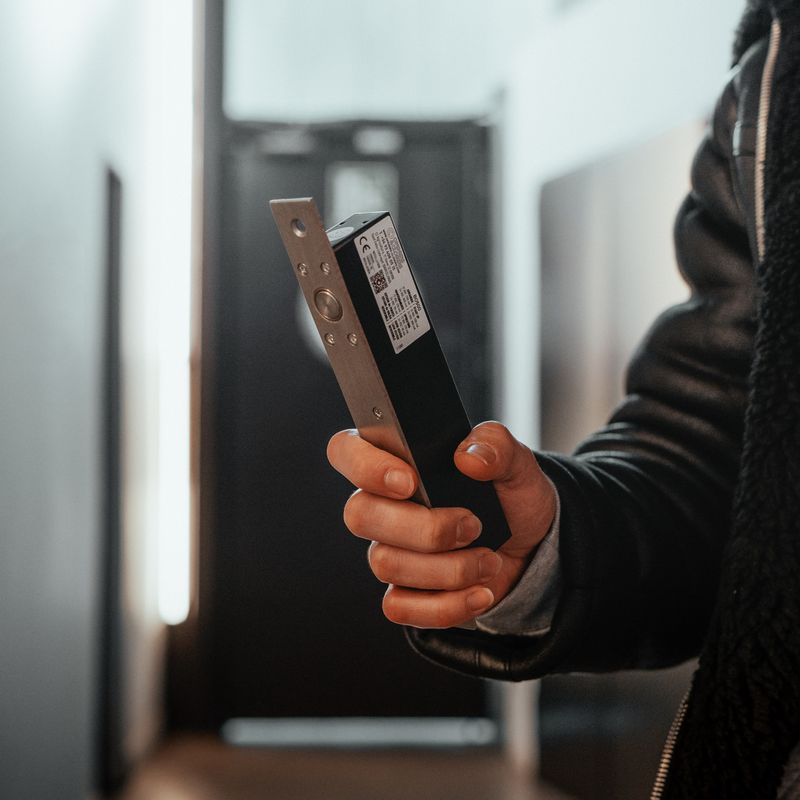

BO400 Electromechanical Lock recess mounted Fail-secure 12V/24V DC
Description
The BO400 is a compact, Fail-Secure (normally closed) electric bolt lock designed for high-security installations. It combines a robust mechanical design, a slim housing for narrow profiles, and advanced electronics for integration with access control systems, providing reliable and durable operation in demanding environments.
Compatible with Series AC keypads, Series TP proximity sensors, and Series TL indicator lights.
Applications
Ideal for high-security applications such as interlock door systems inside clean rooms, laboratories, banks, and other highly controlled zones.
Product Details
- Nominal Voltage
- 12V/24V DC
- Power
- 2.5 W
- Function
- Fail-Secure
- Installation Type
- Recess Mounted
- Door Status
- Yes
- Bolt Status
- Yes
- Timer Delay
- 0s/2.5s/5s/8s
Measurements
- Block
- 163 x 25 x 40 mm
