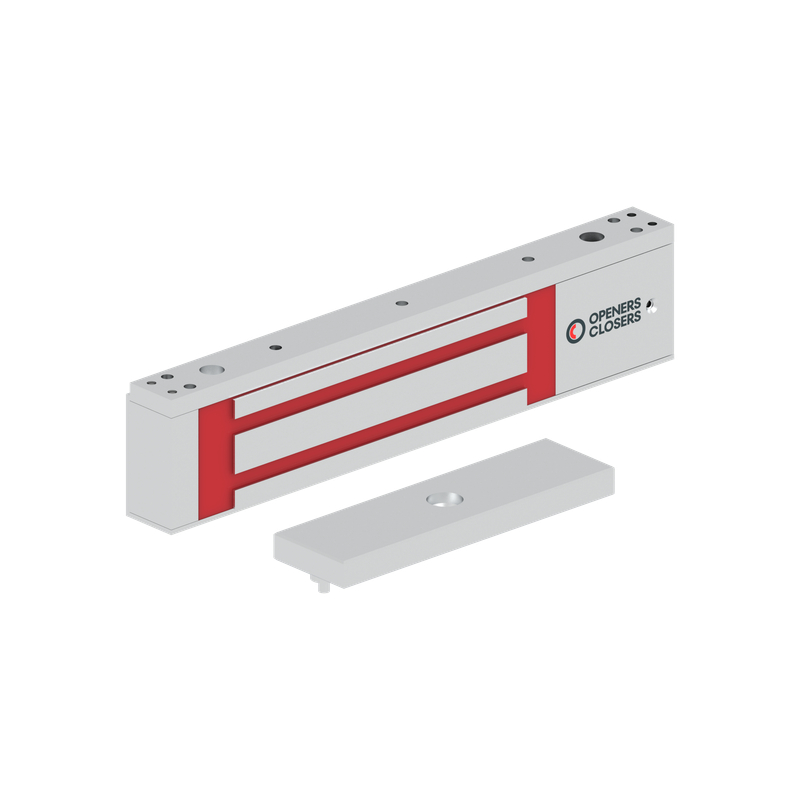

MEX280

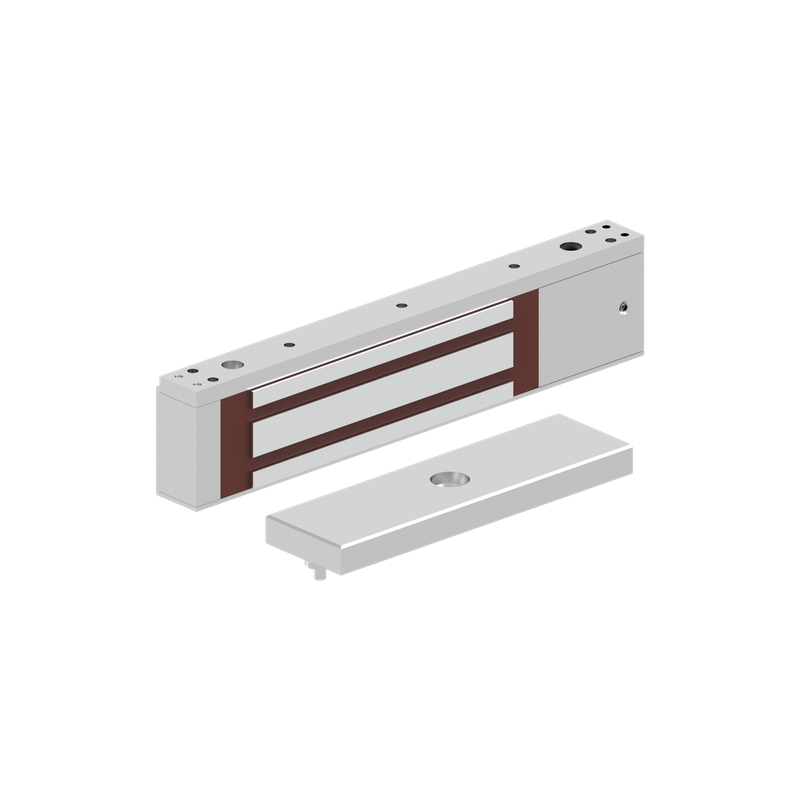

MEX280 Electromagnetic Lock surface mounted 2,800N 12-48V DC
Description
The MEX280 is a mid-sized, surface-mounted electromagnetic lock. MEX models offer a lower energy consumption than ME models without sacrificing performance, achieving the same holding force with a power consumption of only 3W. Available options include door status, LED, and timer.
Product Details
- Nominal Voltage
- 12-48V DC
- Closing Force
- 2,800 N
- Power
- 3.25 W
- Installation Type
- Surface Mounted
- Available Colours
- Inox, Black
Measurements
- Block
- 241 x 52 x 27 mm
- Counterplate
- 156 x 45 x 13 mm
Documents and Resources
Instruction Manuals
Products
Showing 4 Products

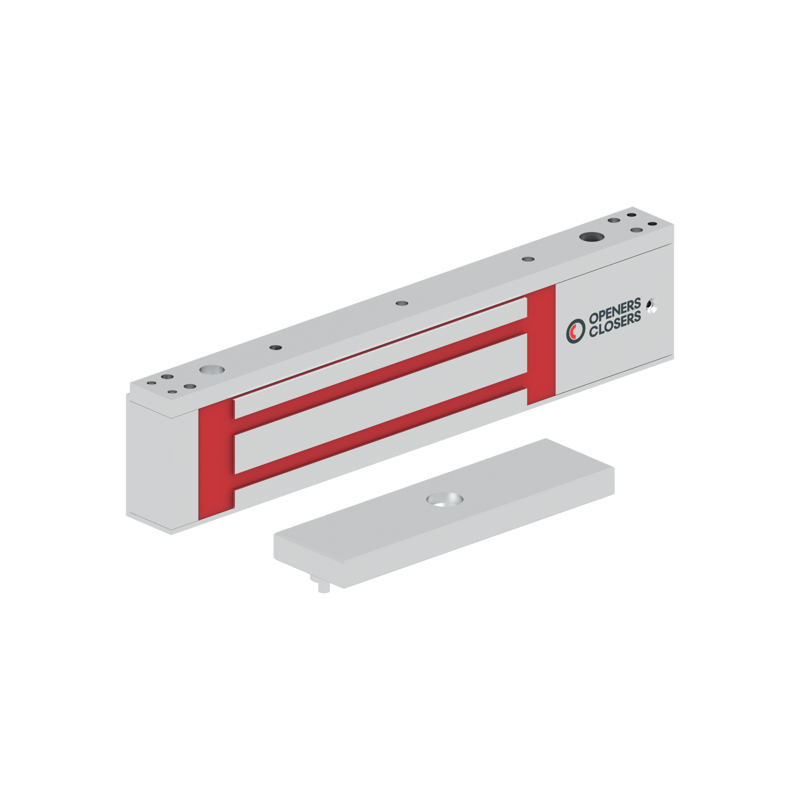

MEX280SV3
Series M Electromagnetic Lock surface mounted 2,800N 12-48V DC with door status LED and timer
MEX280SV3K
Series M Electromagnetic Lock surface mounted 2,800N 12-48V DC with door status LED and timer Black
MEX280SV4
Series M Electromagnetic Lock surface mounted 2,800N 12-48V DC with door status and timer

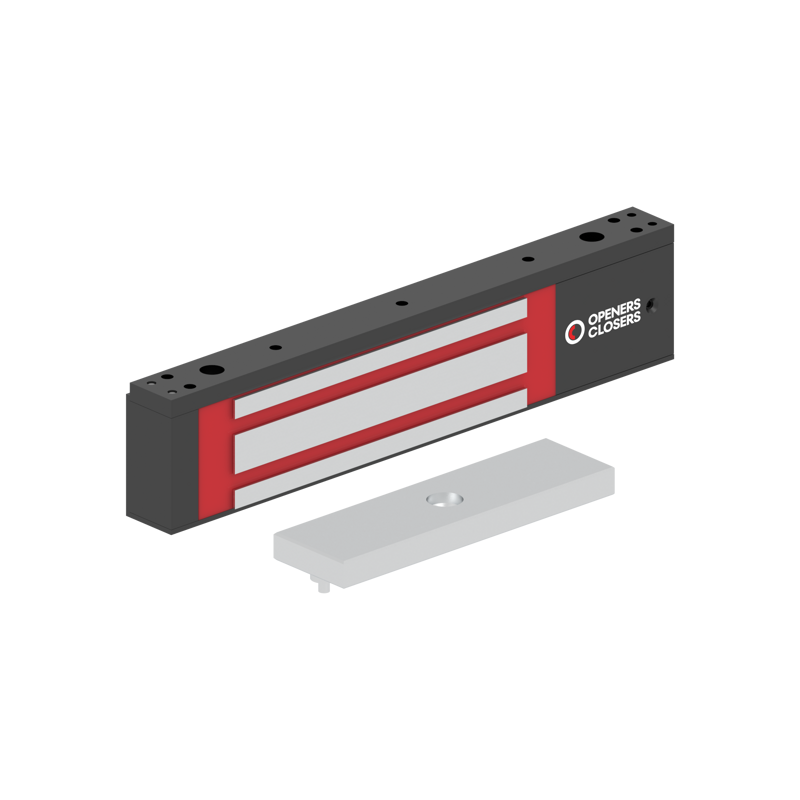

MEX280SV4K
Series M Electromagnetic Lock surface mounted 2,800N 12-48V DC with door status and timer Black
MEX280 Accessories
Showing 6 Products

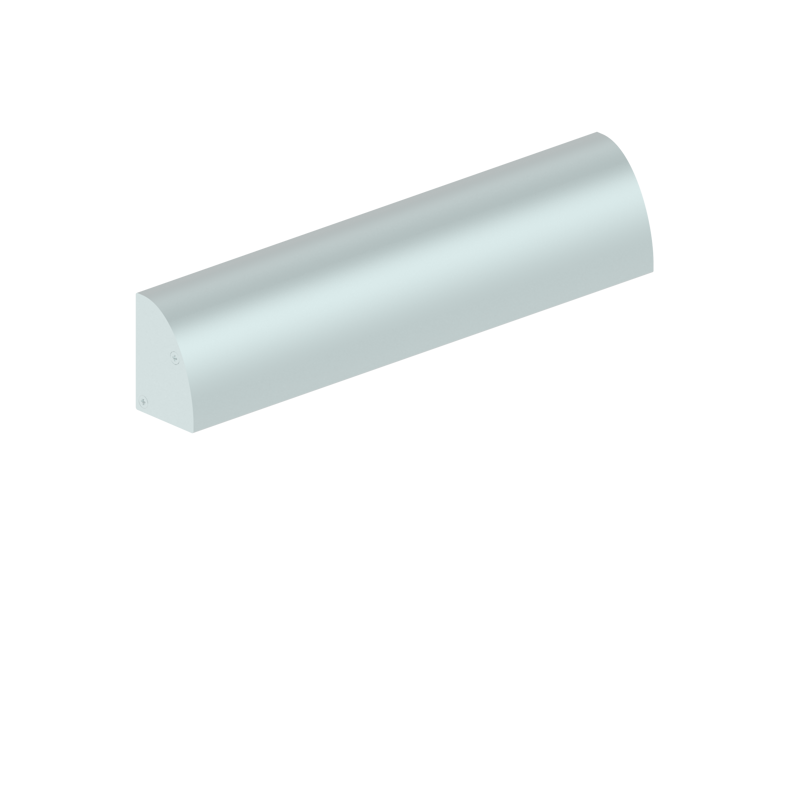

MEXL2
Series M L-type bracket for electromagnetic locks on outward-opening doors Inox

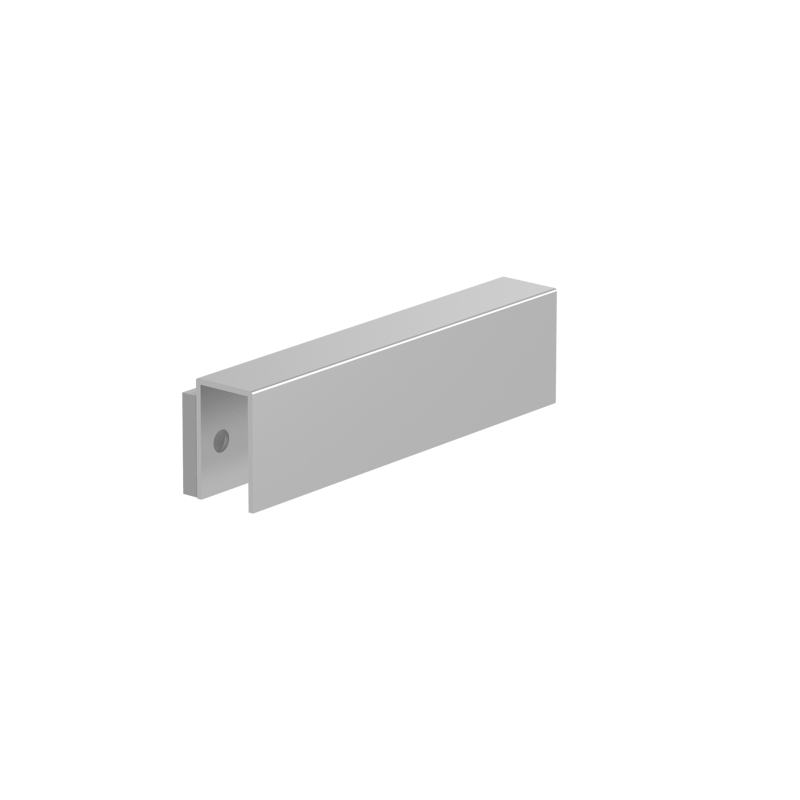

MEXU3
Series M U-type bracket for electromagnetic locks for glass doors

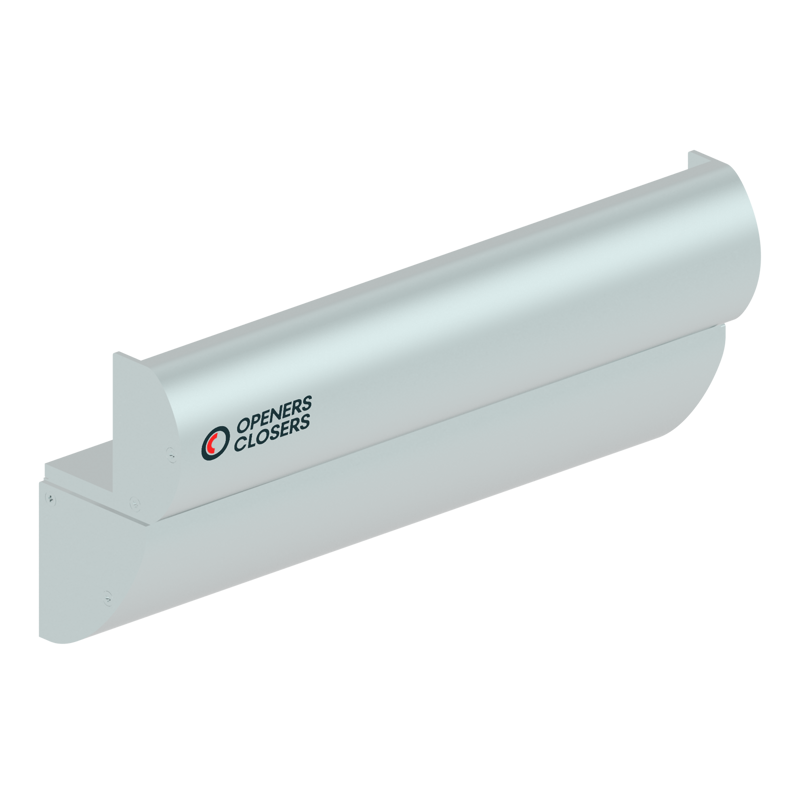

MEXZ3
Series M Z-type bracket for electromagnetic locks on inward-opening doors Inox

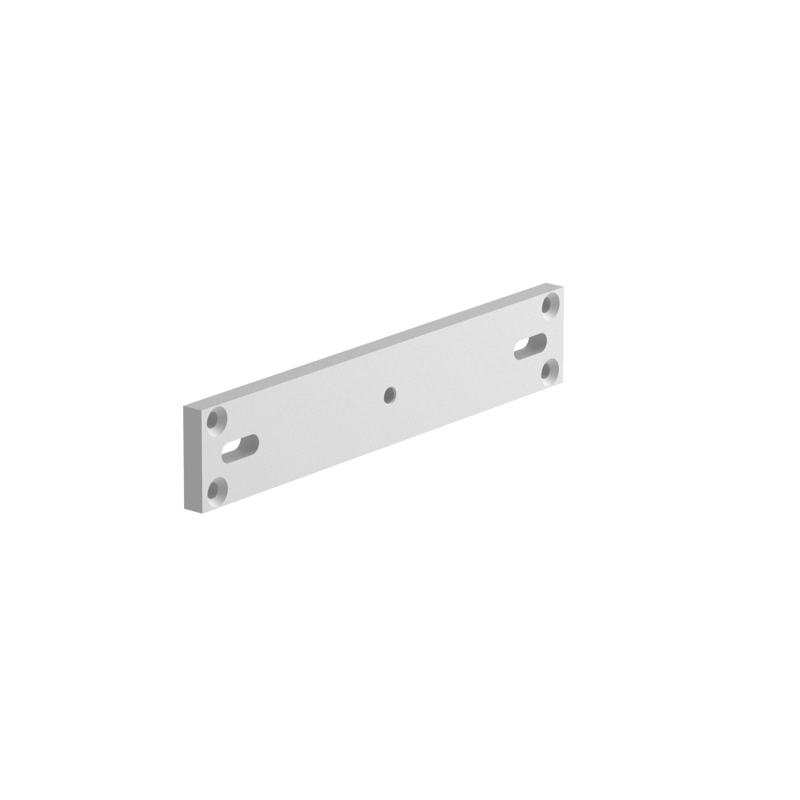

MF1
Series M Bracket for electromagnetic locks on fire doors

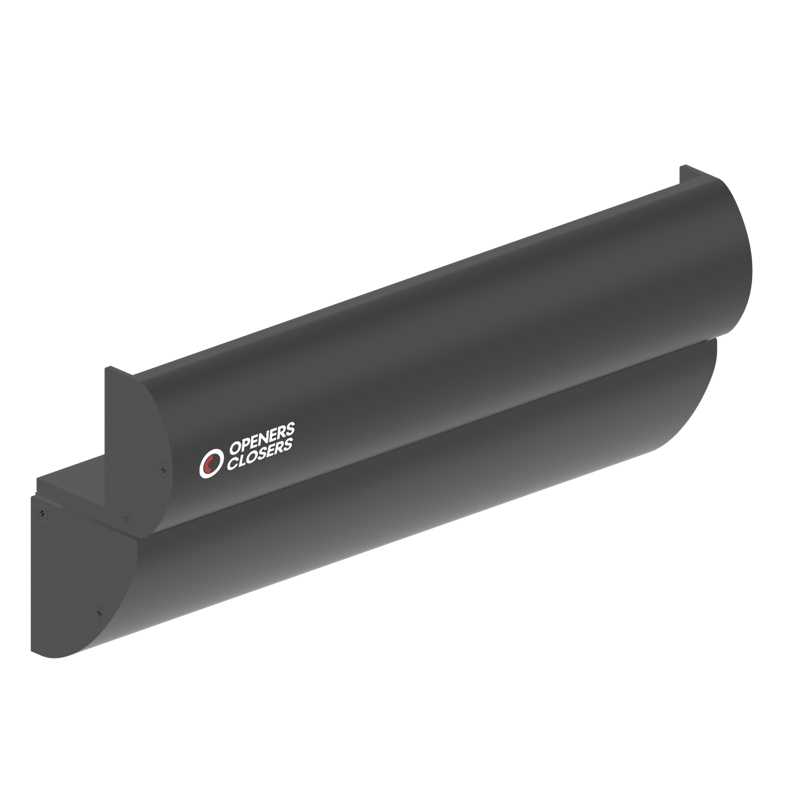

MEXZ3K
Series M Z-type bracket for electromagnetic locks on inward-opening doors Black
