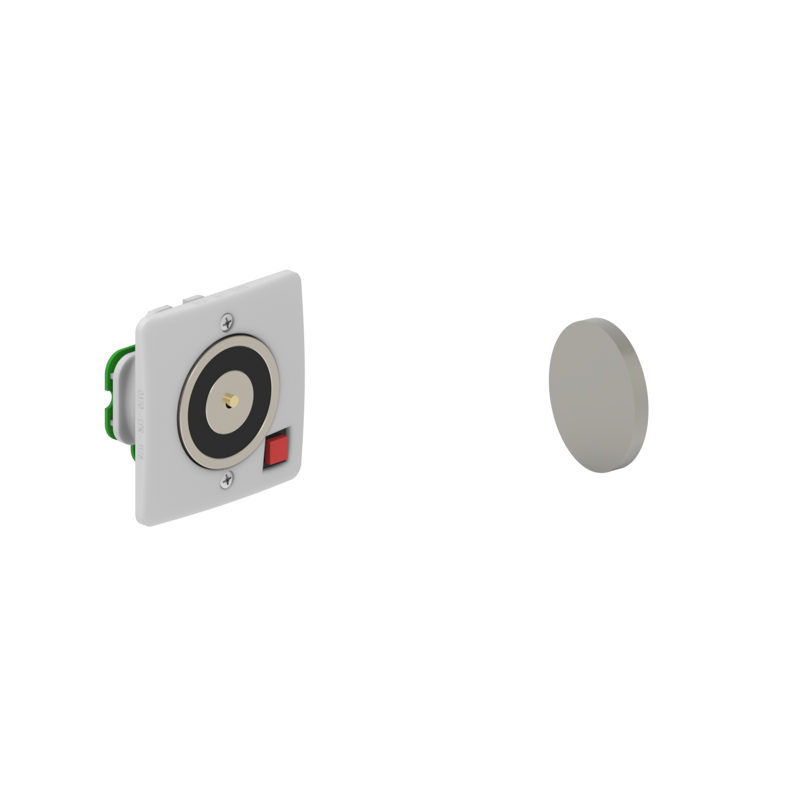

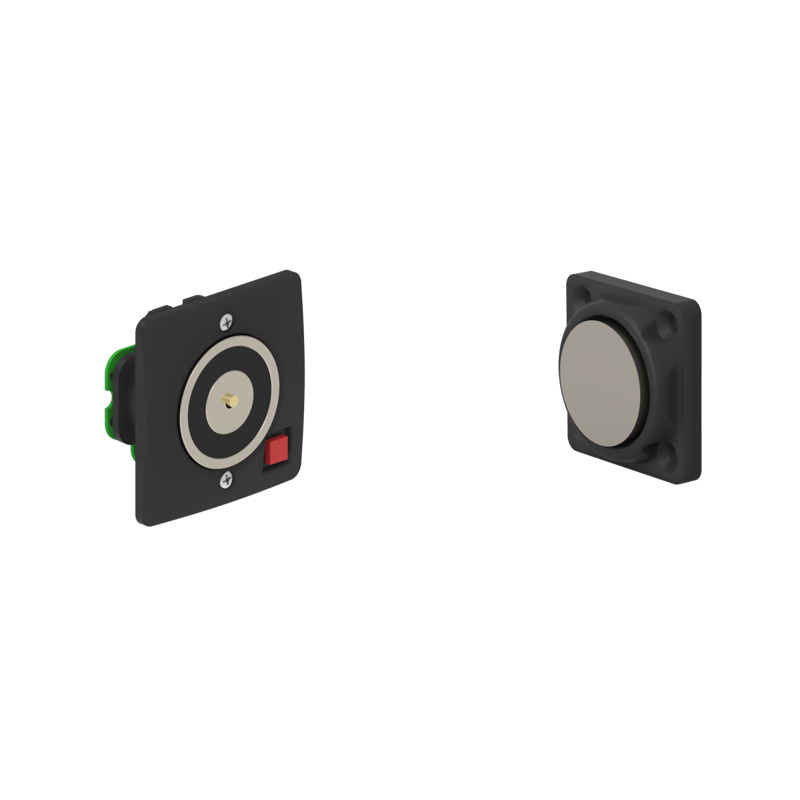

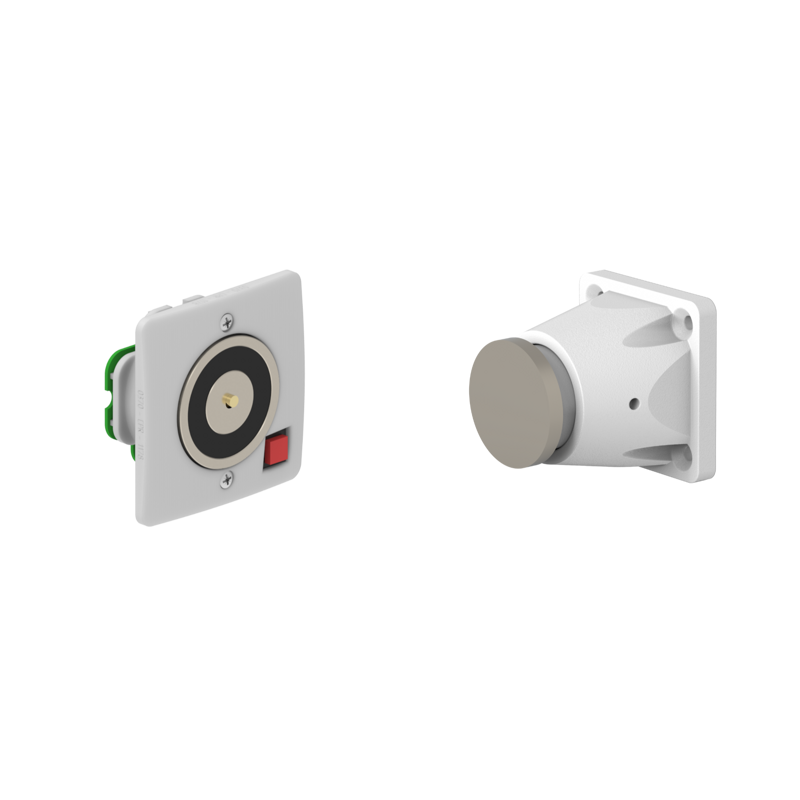

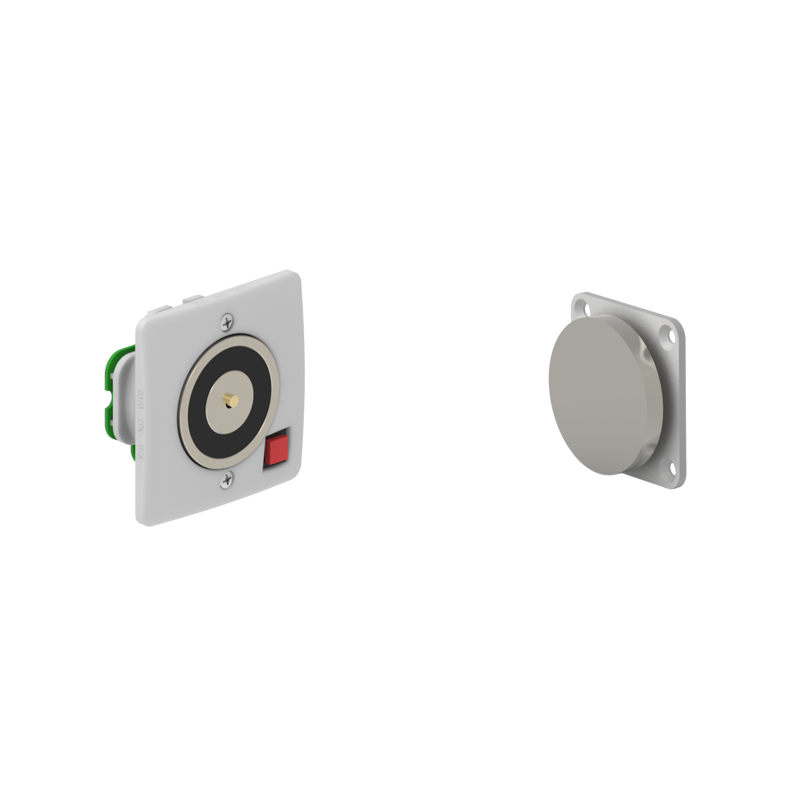

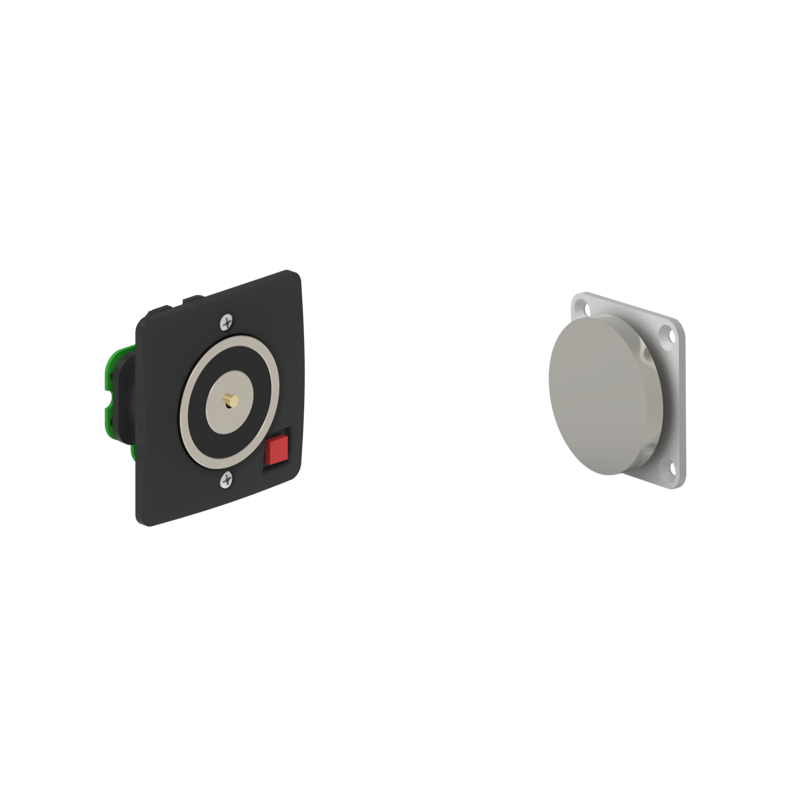

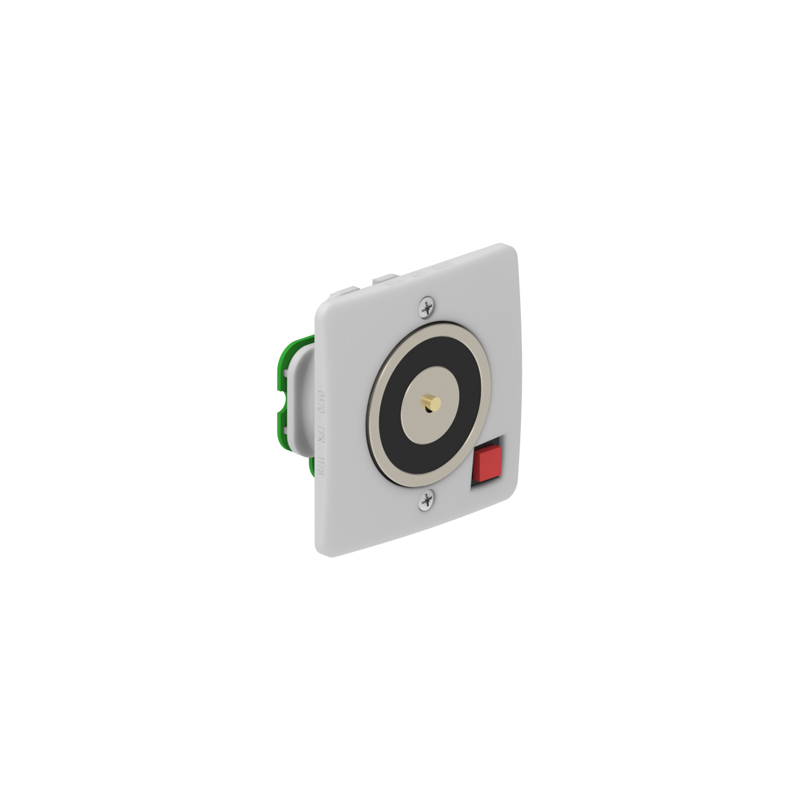

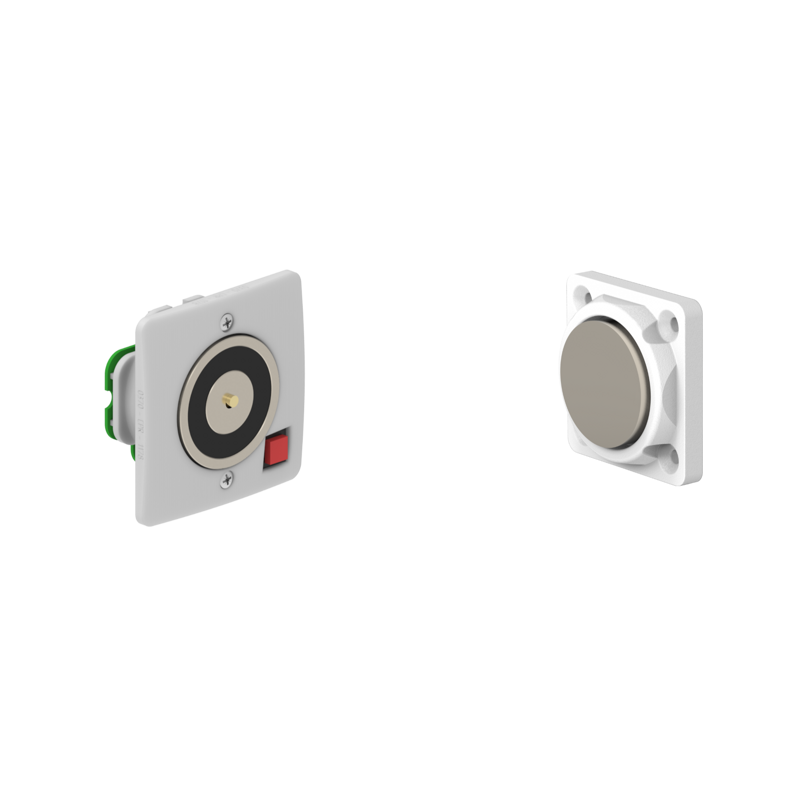

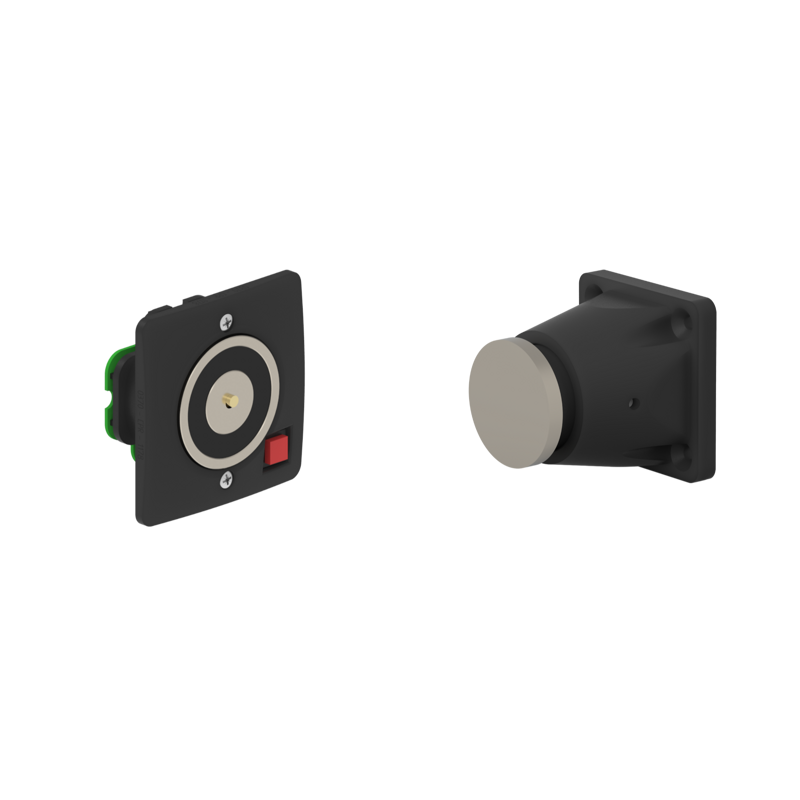

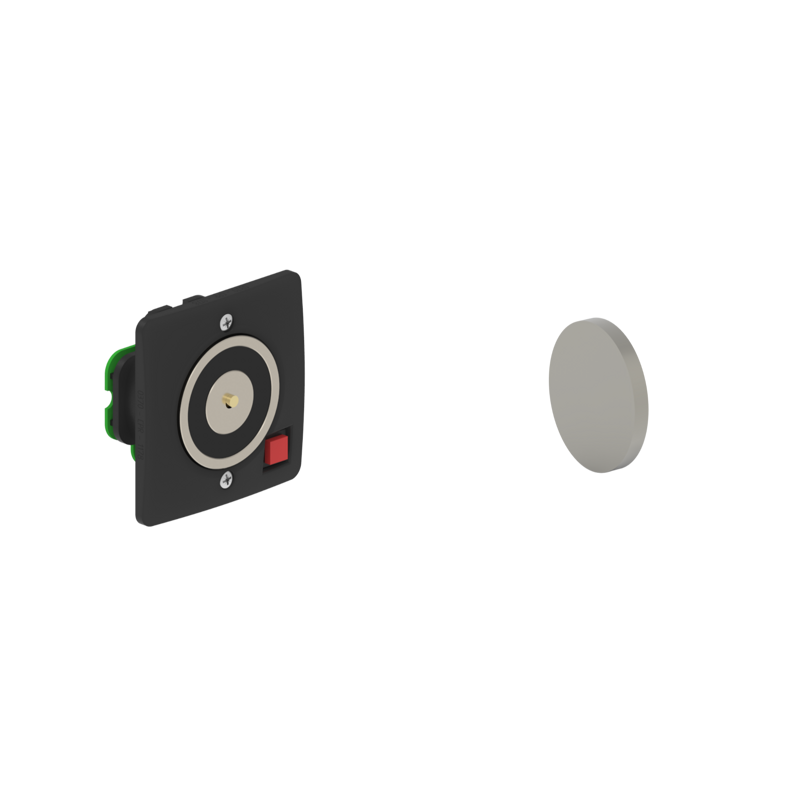

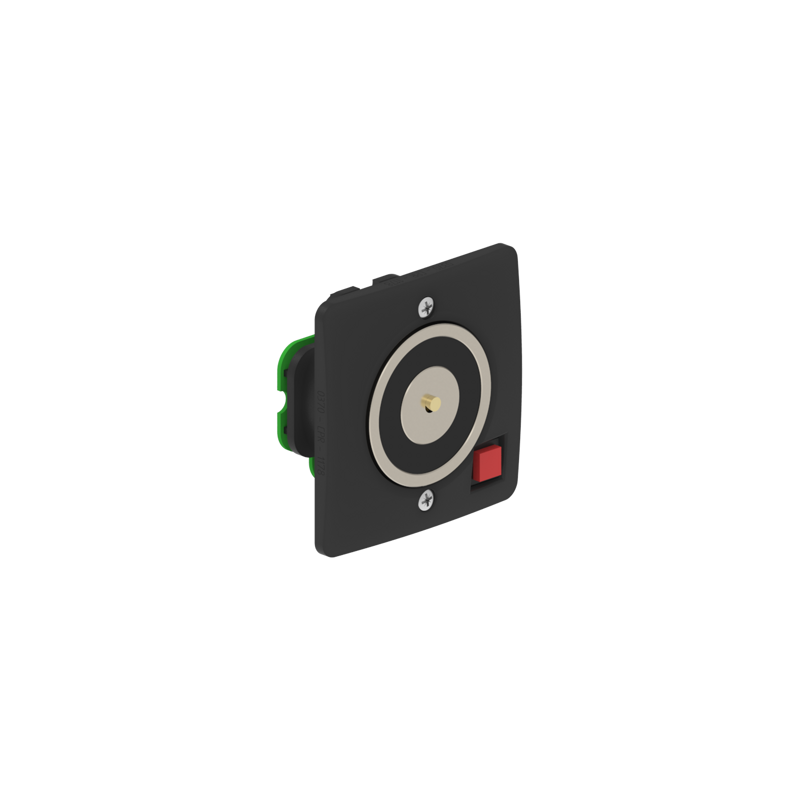

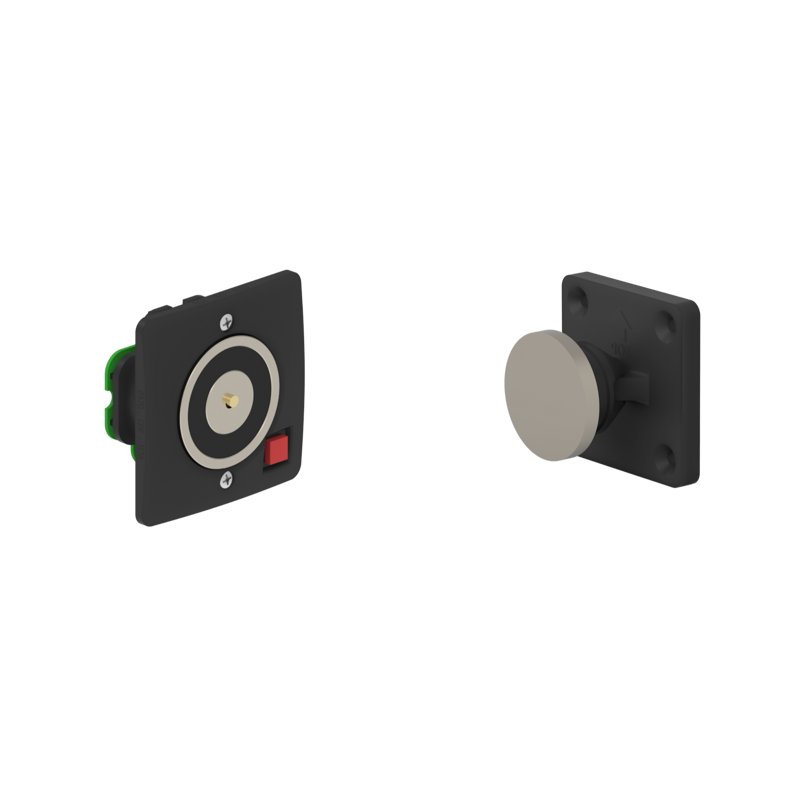

DHUXSF Electromagnetic Lock recess mounted 600N 24V DC Extra Small

DHUXSF Electromagnetic Lock recess mounted 600N 24V DC Extra Small

Description

The DHUXSF is an extra small, recess-mounted electromagnetic lock in 24V DC. Available in Black or White finish. All DH models feature a 600 N maximum holding force and are certified for fire doors to the EN 1155 standard (0370-CPR-1178).

Product Details

Model
DHUXSF
Nominal Voltage
24V DC
Closing Force
600 N
Power
2.4 W
Installation Type
Recess Mounted
Standards
EN 1155:1997 + A1:2002 + A2:2006
Available Colours
Black, White
Suitable for Fire/Smoke Protection Doors
Fire/Smoke

Measurements

Block
80 x 80 x 38 mm

Documents and Resources

Instruction Manuals

Series DH Instruction Manual
