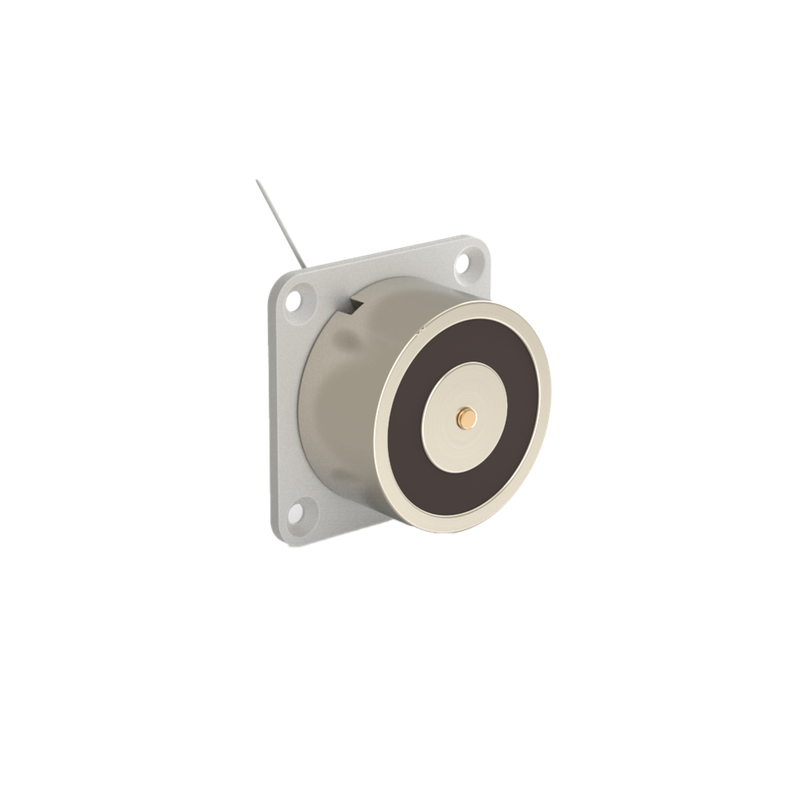

DHIM Electromagnetic Lock surface mounted 600N 24V Medium
Description
The DHIM is a medium, surface-mounted electromagnetic lock. Available in 24V DC with a stainless steel finish. All DH models feature a 600 N maximum holding force and are certified for fire doors to the EN 1155 standard (0370-CPR-1178).
Product Details
- Model
- DHIM
- Nominal Voltage
- 24V DC
- Closing Force
- 600 N
- Power
- 2.4 W
- Installation Type
- Surface Mounted
- Standards
- EN 1155:1997 + A1:2002 + A2:2006
- Available Colours
- Inox
- Suitable for Fire/Smoke Protection Doors
- Fire/Smoke
Measurements
- Block
- 60 x 60 x 28 mm
Documents and Resources
Instruction Manuals
More products from this series
-
DH Accessories
Counterplates and mounting accessories for Series DH
-
DHB
Electromagnetic Lock surface mounted 600N 12/24V
-
DHFMF
Electromagnetic Lock floor mounted 600N 24V DC Medium
-
DHFMW
Electromagnetic Lock floor mounted 600N 12/24V DC Medium
-
DHIS
Electromagnetic Lock surface mounted 600N 24V Small
-
DHULF
Electromagnetic Lock recess and/or surface mounted 600N 24V DC Large
-
DHULW
Electromagnetic Lock recess and/or surface mounted 600N 12/24V DC Large
-
DHUMF
Electromagnetic Lock recess and/or surface mounted 600N 24V DC Medium
-
DHUMW
Electromagnetic Lock recess and/or surface mounted 600N 12/24V DC Medium
-
DHUSF
Electromagnetic Lock recess and/or surface mounted 600N 24V DC Small
-
DHUSW
Electromagnetic Lock recess and/or surface mounted 600N 12/24V DC Small
-
DHUXSF
Electromagnetic Lock recess mounted 600N 24V DC Extra Small
-
DHUXSW
Electromagnetic Lock recess mounted 600N 12/24V DC Extra Small

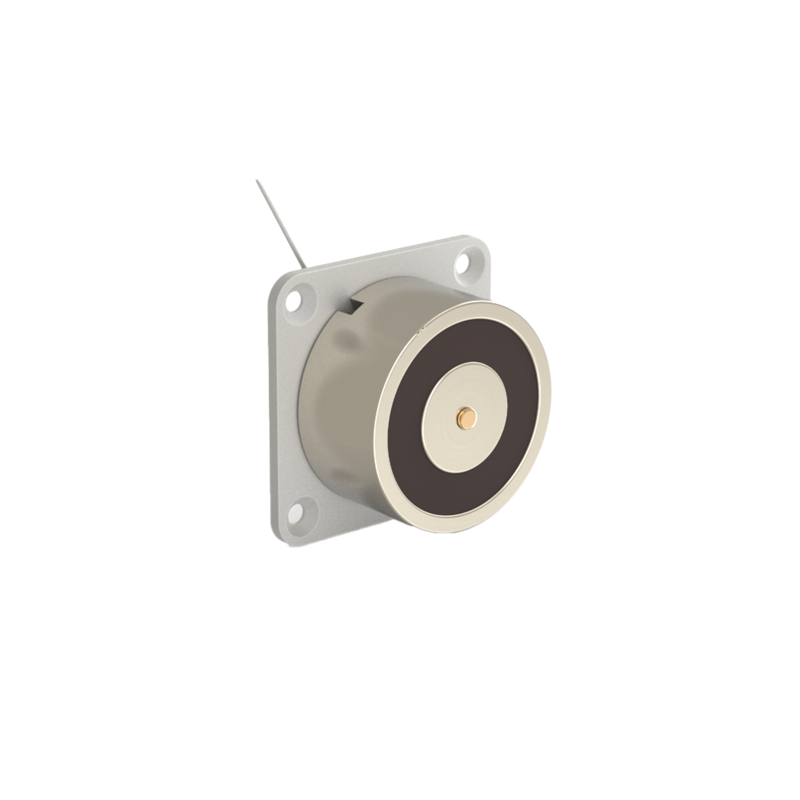

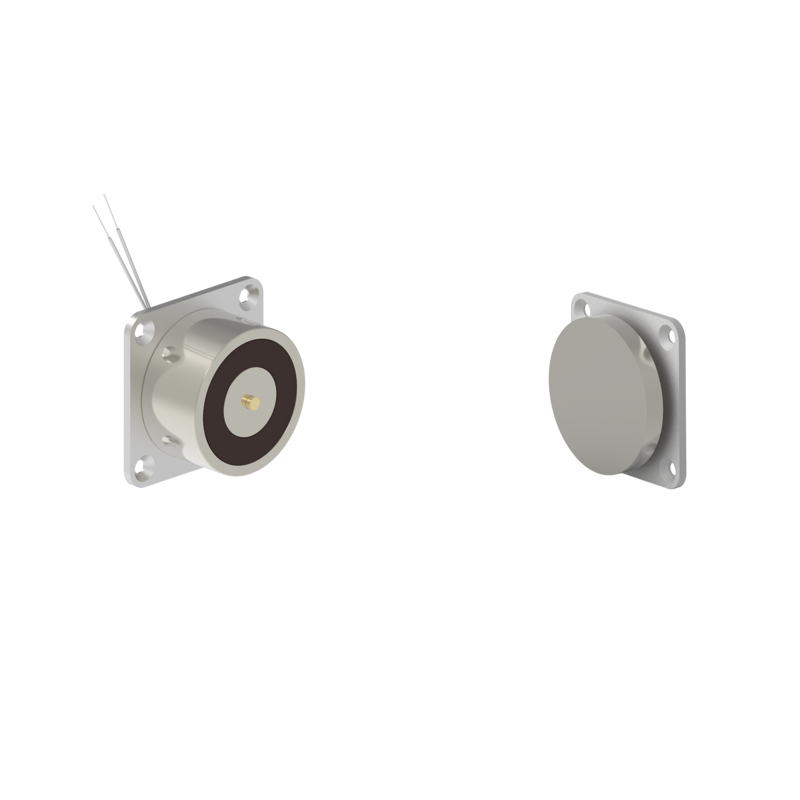

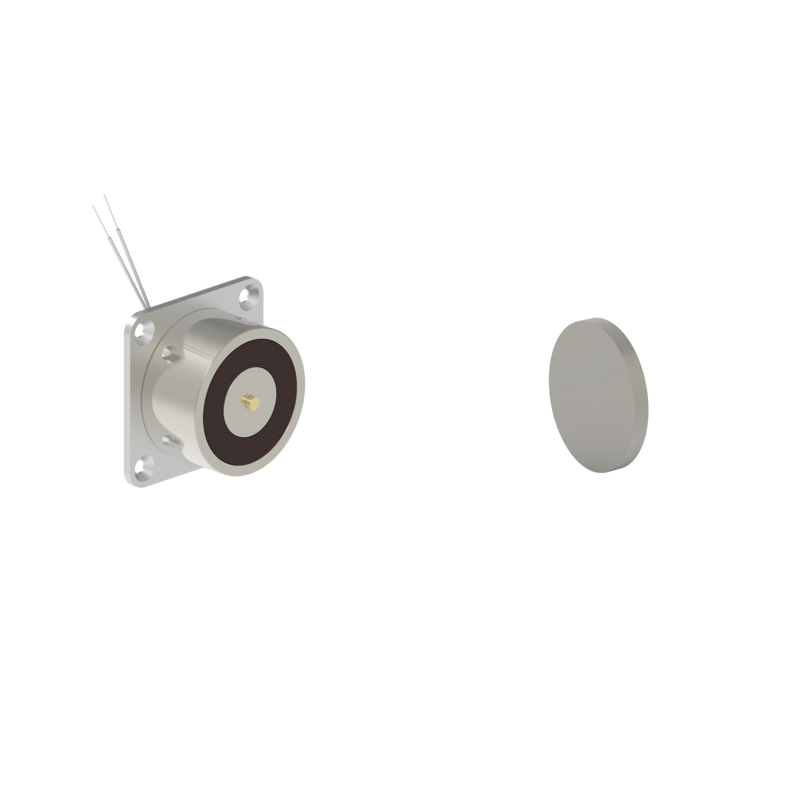

DHIM Versions
