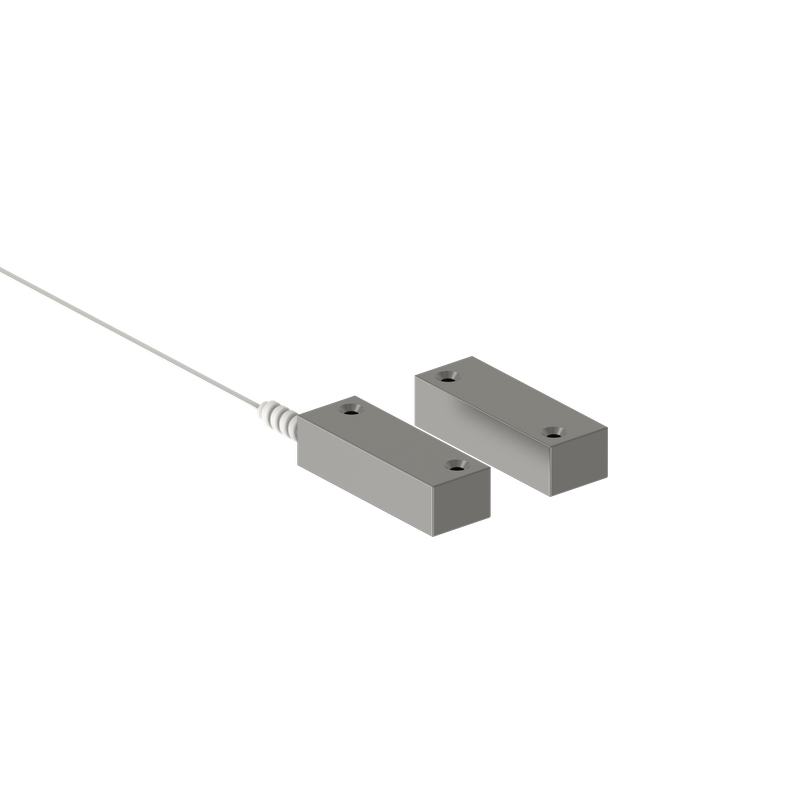

CMC005 Magnetic Contact surface mounted for metal doors Aluminium
Product Details
- Model
- CMC005
- Installation Type
- Surface Mounted
- Ferromagnetic Behaviour
- Ferromagnetic and non-ferromagnetic
- Number of Conductors
- 4
- Operating Temperature
- -25°C − +60°C
- Security Grade
- 2
- Security Class
- IV
- Operating Distance
- 30 mm
- Operating Distance (Fe)
- 15 mm
- Cable Length
- 1.5 m
- Switch Reed
- No
- Colour
- Aluminium
- Principal Material
- Anodized aluminum
Measurements
- Counterplate
- 20 x 15 x 58 mm
- Counterplate
- 20 x 15 x 58 mm
Documents and Resources
Datasheets
Instruction Manuals
Manuals for this product will be available soon
More products from this series
-
CMB003
CMB003 Magnetic Contact surface mounted for overhead doors Black
-
CMB003G
CMB003G Magnetic Contact surface mounted for overhead doors Black
-
CMB020
CMB020 Magnetic Contact surface mounted for overhead doors Aluminium
-
CMB020PM
CMB020PM Magnetic Contact surface mounted with magnetic protection for overhead doors Aluminium
-
CMB020PM24

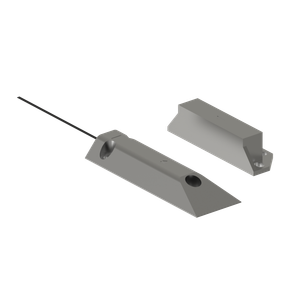

CMB020PM24 Magnetic Contact surface mounted with magnetic protection for overhead doors Aluminium
-
CMC006
CMC006 Magnetic Contact surface mounted for metal doors Aluminium
-
CMC046
CMC046 Magnetic Contact surface mounted in die-cast aluminium
-
CMC046PM
CMC046PM Magnetic Contact surface mounted with magnetic protection in die-cast aluminium
-
CMC046PM24
CMC046PM24 Magnetic Contact surface mounted with magnetic protection in die-cast aluminium
-
CMC047
CMC047 Magnetic Contact surface mounted with screw terminals
-
CMC047PM
CMC047PM Magnetic Contact surface mounted with magnetic protection with screw terminals
-
CMC047PM24
CMC047PM24 Magnetic Contact surface mounted with magnetic protection with screw terminals
-
CMC1501
CMC1501 Magnetic Contact surface mounted high security IP65
-
CMC1501SH
CMC1501SH Magnetic Contact surface mounted high security IP65
-
CME002
CME002 Magnetic Contact surface mounted Plastic body
-
CME045
CME045 Magnetic Contact surface mounted ultra-flat high capacity White
-
CME045B
CME045B Magnetic Contact surface mounted ultra-flat high capacity Brown
-
CME045B3
CME045B3 Magnetic Contact surface mounted ultra-flat high capacity Brown
-
CME045G
CME045G Magnetic Contact surface mounted ultra-flat high capacity Green
-
CME045G3
CME045G3 Magnetic Contact surface mounted ultra-flat high capacity Green
-
CME045K
CME045K Magnetic Contact surface mounted ultra-flat high capacity Black
-
CME045K3
CME045K3 Magnetic Contact surface mounted ultra-flat high capacity Black
-
CME045PM
CME045PM Magnetic Contact surface mounted with magnetic protection ultra-flat high capacity White
-
CMG01

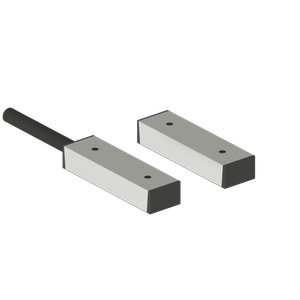

CMG01 Magnetic Contact surface mounted active security
-
CMGAUSS01

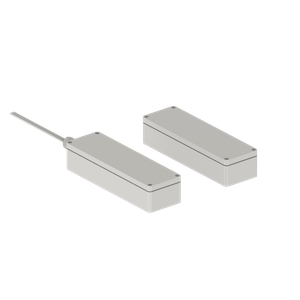

CMGAUSS01 Magnetic Contact surface mounted active security
-
